Active Loudspeakers
SCM150ASLT
Overview
ATC SM75-150 S Soft Dome Mid driver
Latest 375mm SL Spec Bass driver
Massive ATC motor assembly
Wide, even dispersion for pin-point imaging
350 watt class AB tri-amp pack
Active filters and overload protection
6 year warranty
Also available in passive version
Any veneer to order. Featured veneer: Cherry
The SCM150 ASLT (active) and SCM150 SL (passive) are designed to perform at their best with the finest quality hi-fi equipment.
Like their smaller brother, the SCM50 ASL & 100 the monitors’ ability to reproduce music and speech with phenomenal accuracy, transparency and dynamics lies mainly in the SM75-150s soft dome midrange driver. However, recent modifications that include an upgraded tweeter and enhanced port profile have brought about further improvements in all performance parameters.

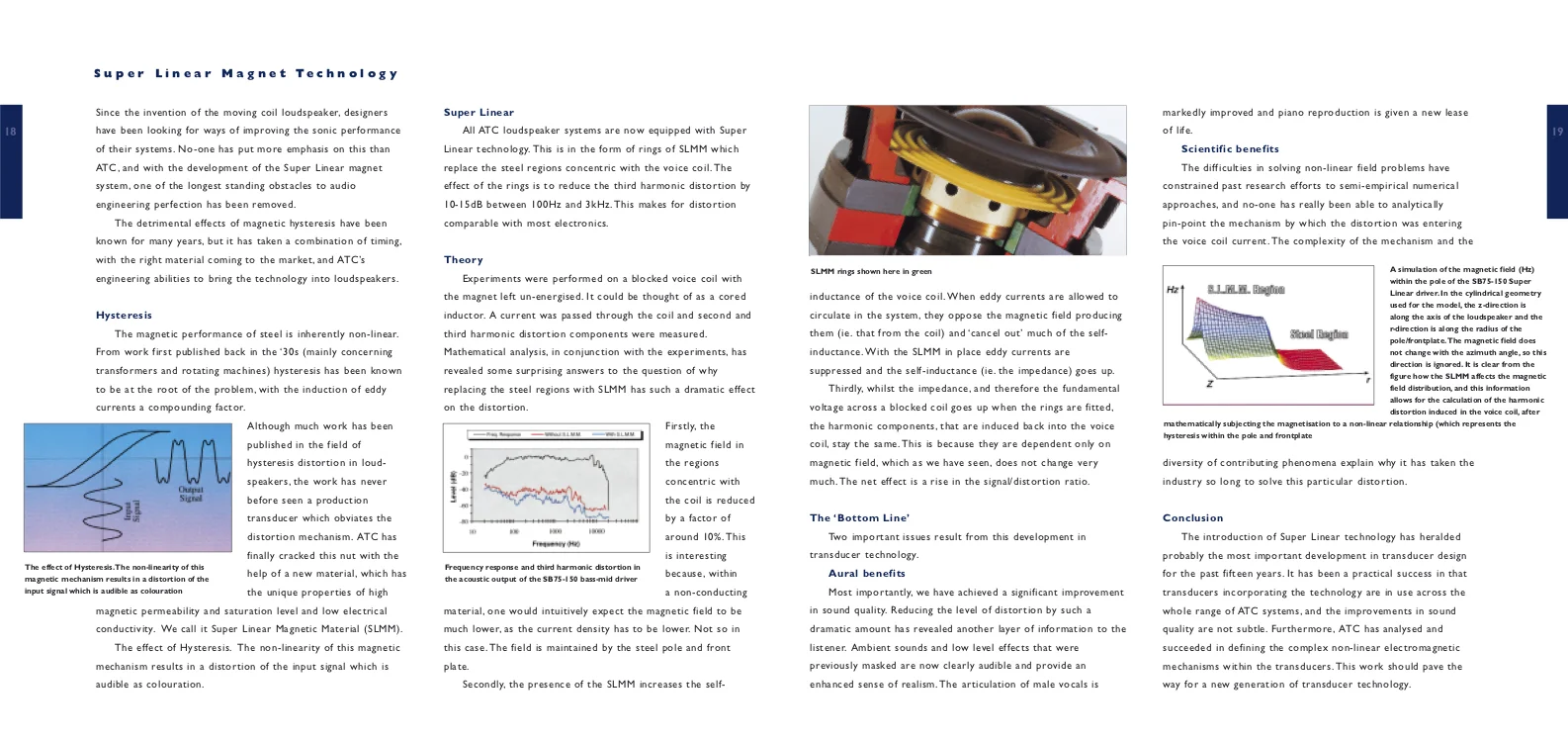

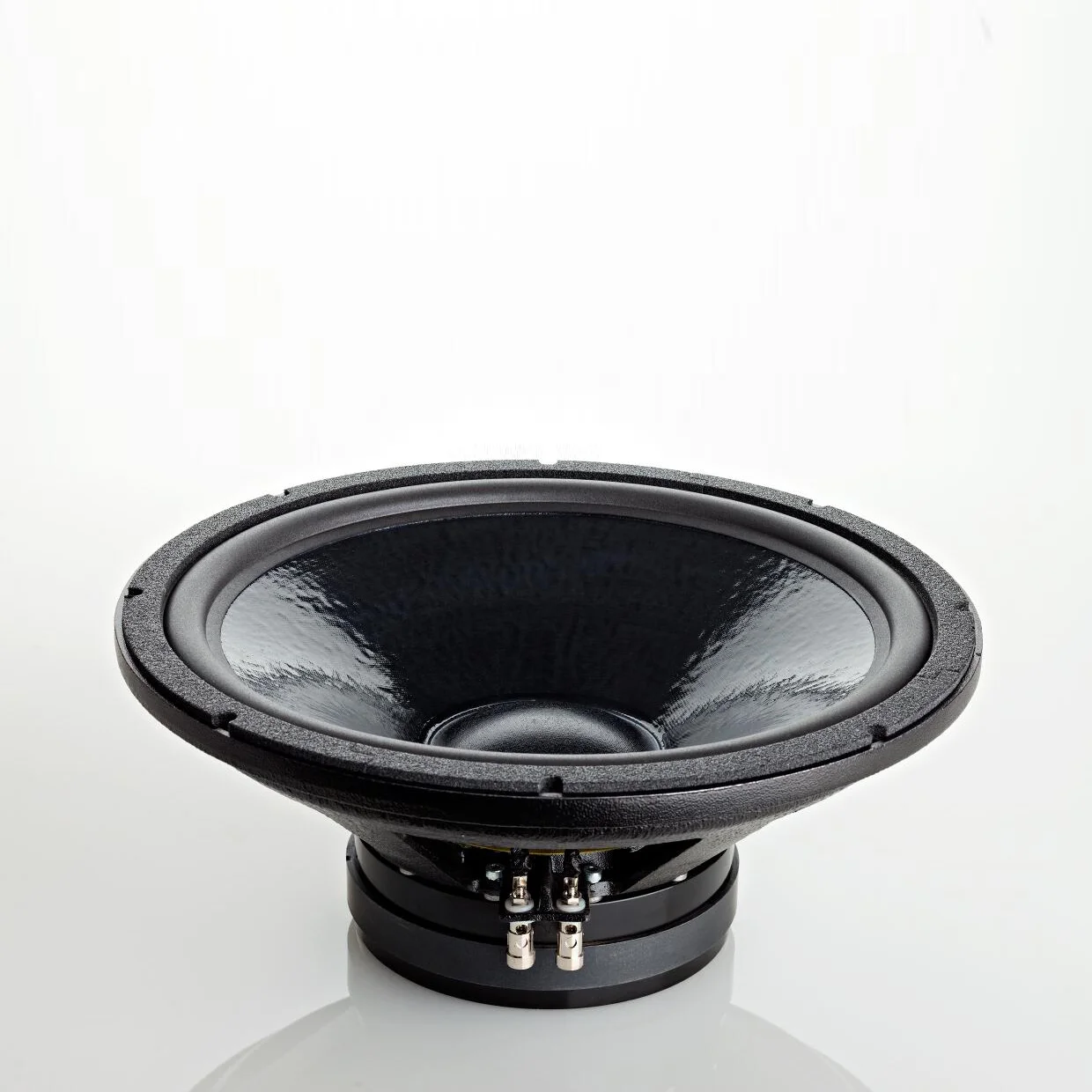

Bass performance is equally impressive, thanks to ATC’s 15″ professional level bass driver that incorporates the company’s unique Super Linear Magnet technology. Bass, mid and HF drive units in the active model have their own dedicated and individually matched MOS-FET amplifiers.
ATC’s active crossover network consists of a wide band-width, electronically balanced input stage with high common mode rejection and very low distortion.
In passive form, the SCM150 SL provides broad and symmetrical dispersion, excellent amplitude and phase characteristics throughout the audio frequency range.
Specifications
Drivers: HF 25mm Neodymium, Mid 75mm ATC Soft Dome, LF 375mm SL
Amplitude Linearity (±2dB): 60Hz–17kHz
Frequency Response (±6dB): 25Hz–22kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Max SPL: 117dB
Crossover Frequencies: 380Hz & 3.5kHz
Connectors: Male XLR
Filters: All active
Amplifier Output: 200w LF, 100w Mid, 50w HF
Cabinet Dimensions (HxWxD): 1104x495x635mm
Weight: 77kg
Warranty: 2 year warranty, extendable to 6 years by redemption with ATC within 30 Days of Purchase

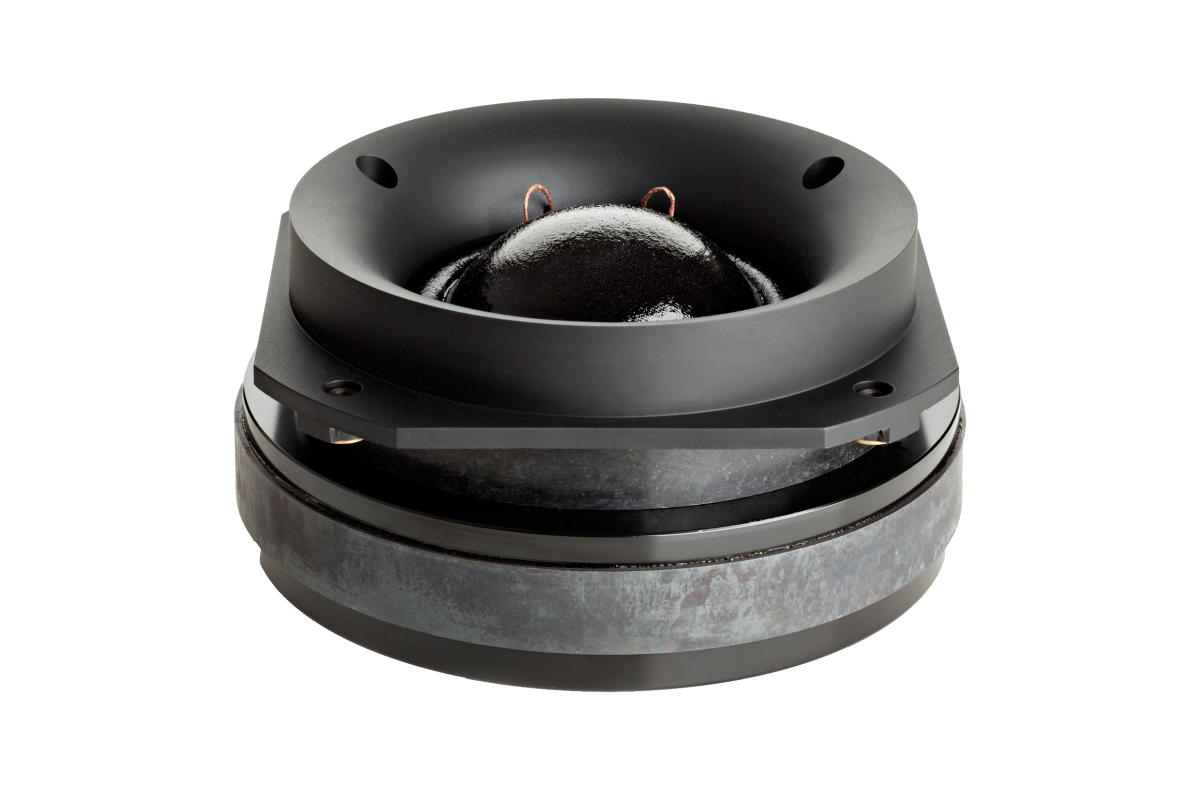

Soft Dome Mid-Range
There are few engineering developments in any field that have effected change to the extent that ATC’s Soft Dome Midrange has on the monitoring of sound and particularly of music and voice. First produced in 1976 ATC’s soft dome represents the very best of midrange loudspeaker design and performance combining a smooth response from 350Hz to 3.5KHz, exceptionally low colouration, high power handling capacity, low power compression and high output level.
This performance is achieved in ATC’s soft dome drive unit by having a very linear low distortion drive system comprising a 75mm diameter short coil operating in a long magnet gap supported on 2 suspensions to guarantee controlled coil movement, maintain concentricity with the very tight gap-coil clearances and also ensure excellent heat dissipation and power handling. The magnet gap is also in a magnetic circuit that is saturated and therefore not affected by the non-linearity due to hysteresis of the steel used in the magnetic assembly. The dome diaphragm, driven at its edge by the coil-former assembly, is a soft woven fabric impregnated with a viscous damping medium to attenuate unwanted resonances and ensure a smooth response with very low audible colouration. The response of the soft dome diaphragm is further improved by mounting it in a phase correction flange the profile of which is a mirror image of the dome. All of these elements combine to produce a midrange driver of exceptional fidelity and neutrality.
ATC’s soft dome midrange is a common element in all ATC three way systems ensuring consistency between models and the best performance money can buy.
Downloads
Download ATC SCM150ASL User Manual
