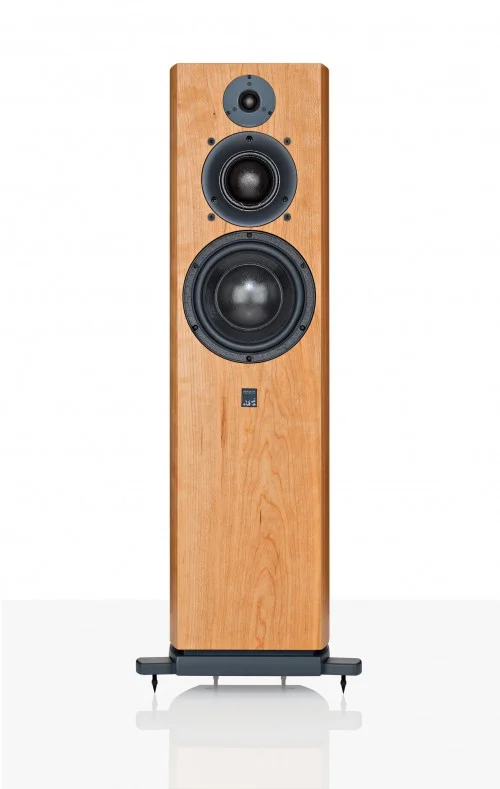

ATC SCM40A

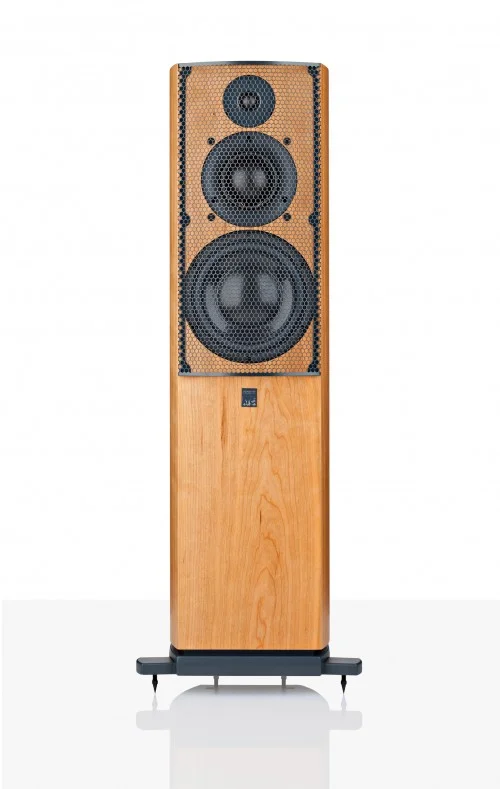

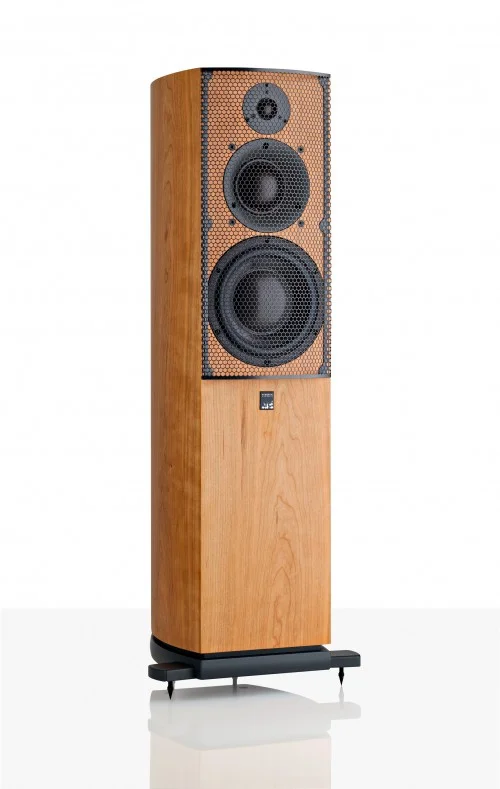

ATC SCM40A active loudspeaker with mesh grill

ATC SCM40A

A$17,590.00

Active Loudspeakers

Quantity:

Add To Cart

SCM40A

Overview

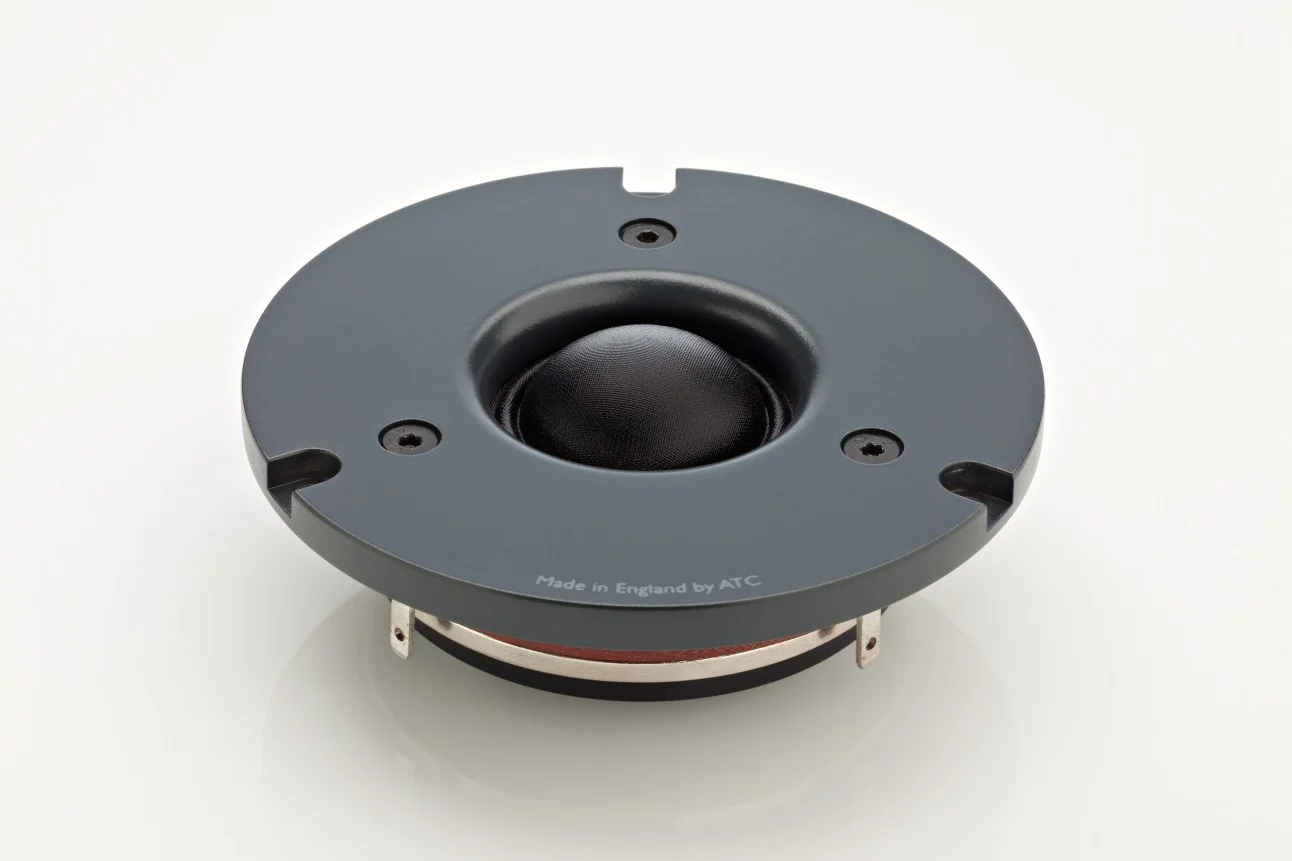

New ATC designed and built dual suspension 25mm soft dome HF unit with precision alloy wave guide.

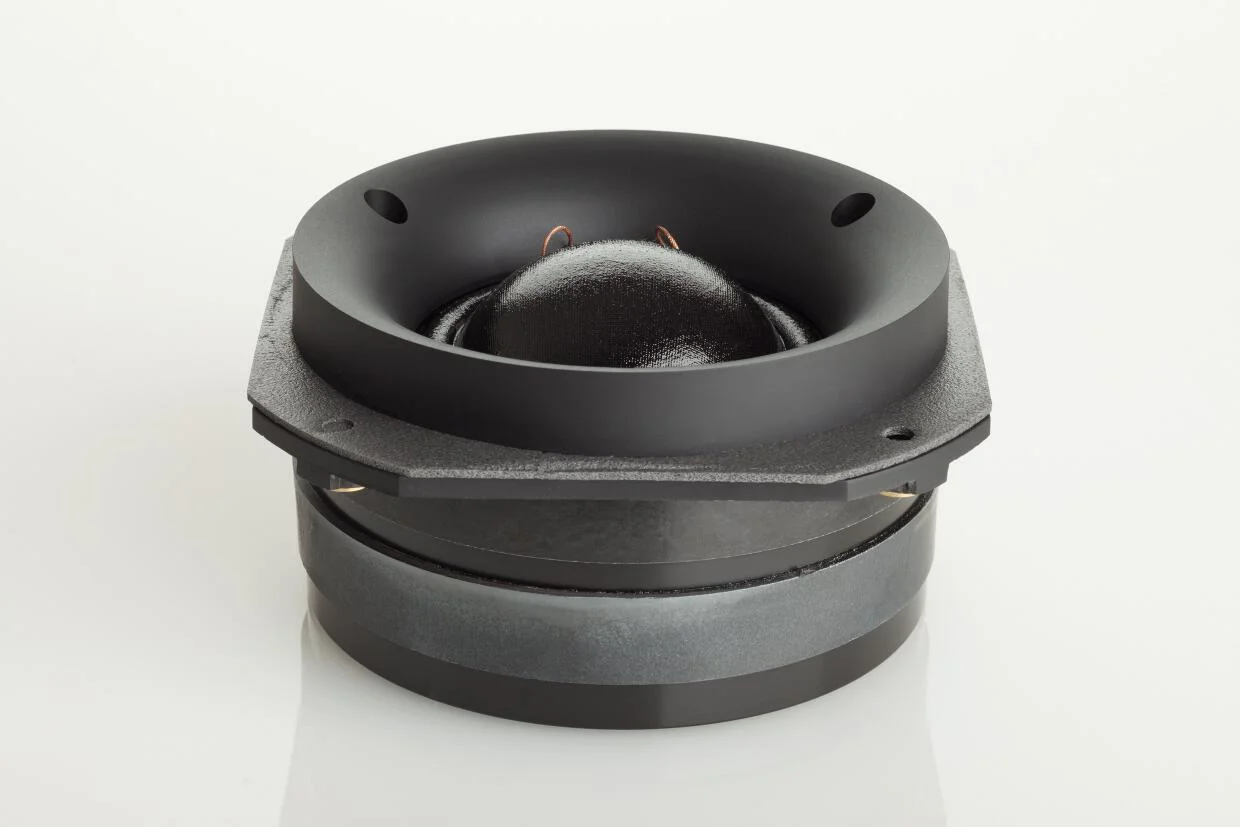

ATC Soft Dome mid-range driver.

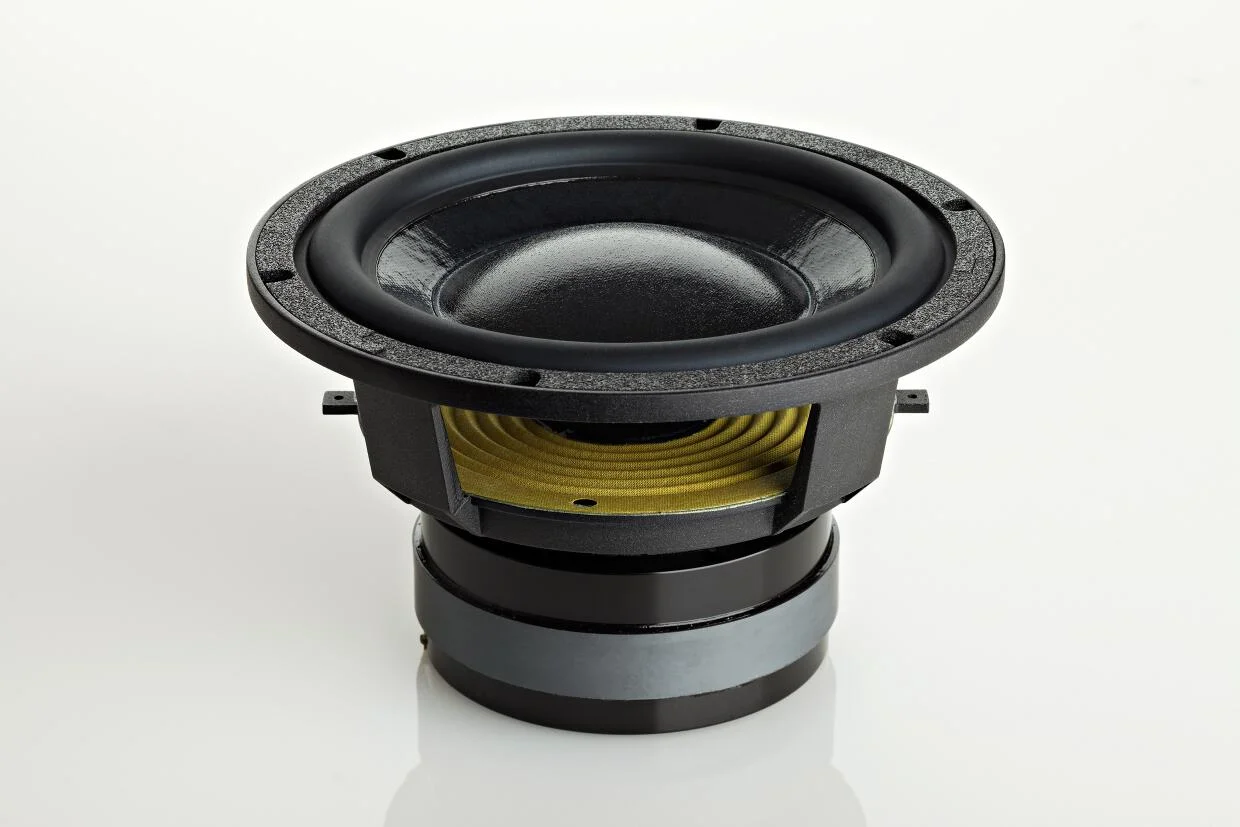

ATC 164mm short coil bass driver.
All drive units incorporate massive optimised motor assemblies.
On-board grounded source 242 watt Class A/B Tri-amplifier.
Active crossover filters and overload protection.
2 year warranty, extendable to 6 years by redemption with ATC within 30 Days of Purchase

“these ATCs… take all in their stride, revealing a lovely cohesion throughout the frequency range. Resolution, timing and dynamics are all spot-on… factor in the built-in amplification, exotically engineered in-house drive units and the resultant exceptional sound quality, and the SCM40As emerge as something of a high-end bargain. Consider us smitten.” What Hi-Fi, March 2015.

Specifications

Drivers: HF ATC 25mm dual suspension Tweeter, Mid 75mm ATC Soft Dome, LF ATC 164mm SC
Matched Response: ±0.5dB
Frequency Response (-6dB): 48Hz-22kHz
Dispersion: ±80° Coherent Horizontal, ±10° Coherent Vertical
Max SPL: 112dB
Crossover Frequencies: 380Hz & 3.5kHz
Connectors: Male XLR
Input sensitivity : 1V
Filters : 4th Order critically damped with phase compensation.
Overload Protection : Active FET momentary gain reduction.
Fault Protection : DC fault protection and thermal trip. Fault indication on rear panel mounted LED.
Amplifier Output: 150W LF, 60W MF, 32W HF
Cabinet Dimensions (HxWxD): 980 x 370 x 344mm (inc. foot plinth & amp, spikes add 25mm to height, grill adds 34mm to depth)
Weight: 36kg
