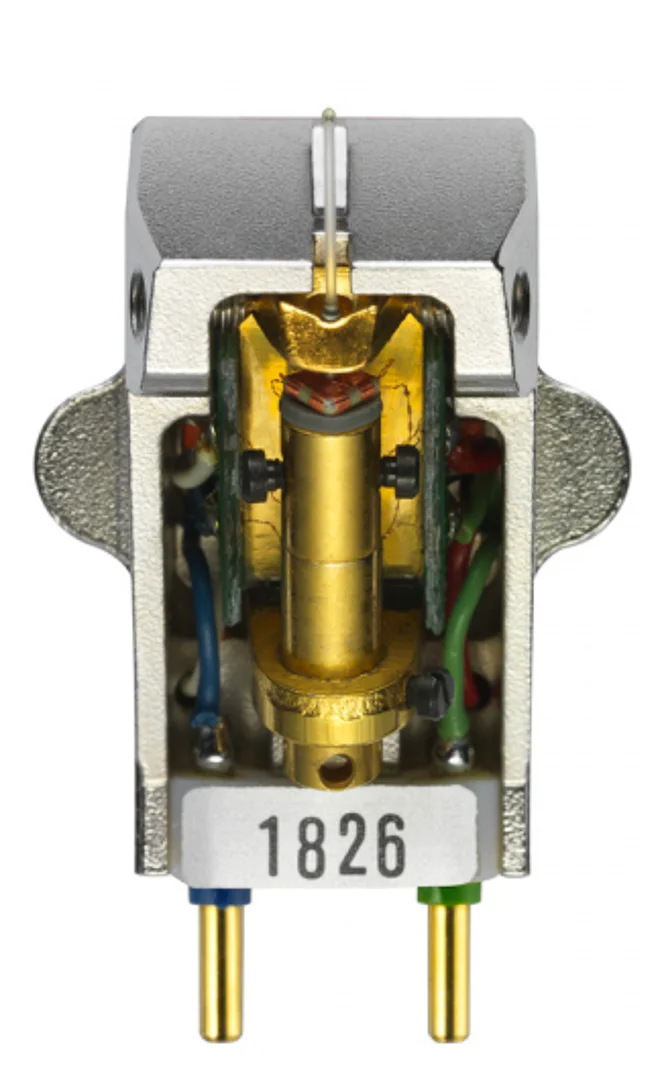

JSD Platinum

The JSD Platinum is characterized by its high-density body made of a brass-based alloy being carefully selected for best sound properties.

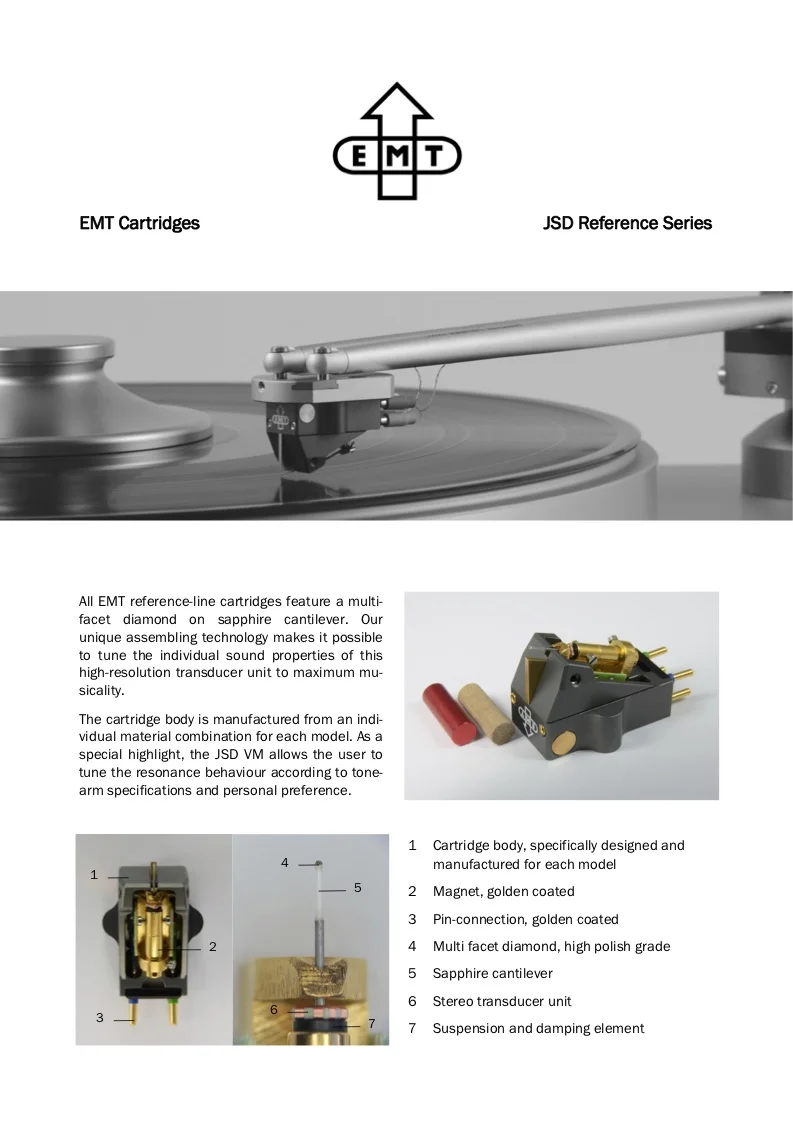

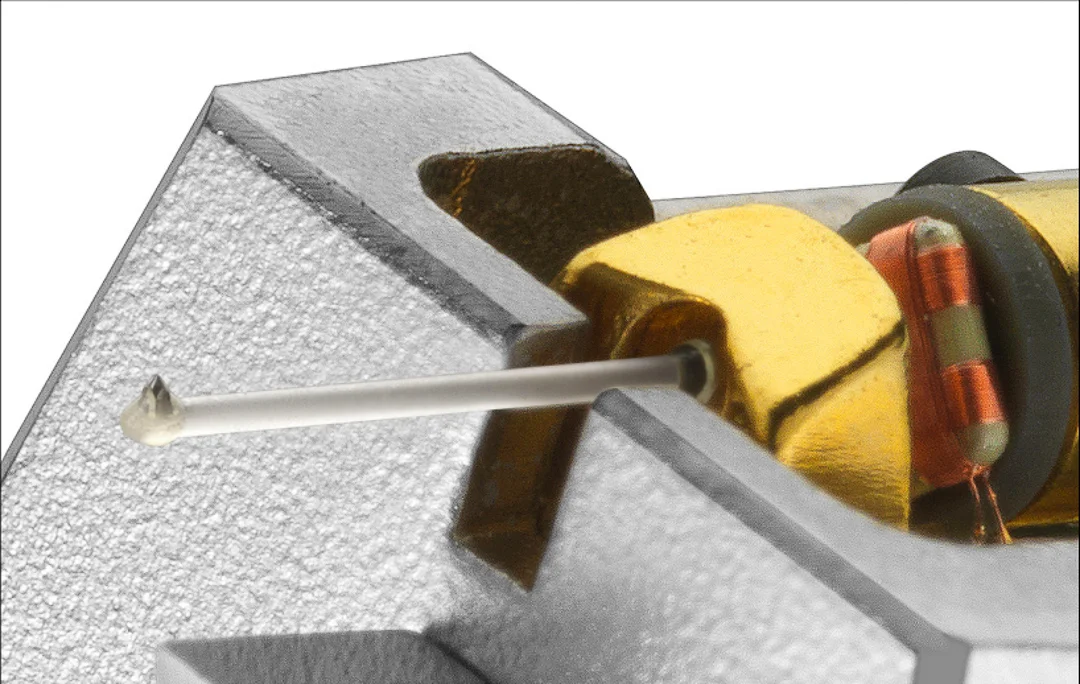

All EMT reference-line cartridges feature a multi-facet diamond on sapphire cantilever. Our unique assembling technology makes it possible to tune the individual sound properties of this high-resolution transducer unit to maximum musicality.

Product Specifications
■ Model: moving coil (MC) type phono cartridge
■ Output voltage:.. 2 x 1mV / ch ± 2dB 1kHz, 5cm / sec Rms
■ Play for frequency band: 20 ~30,000Hz
■ Level difference: <1dB 40Hz ~ 12.5kHz
■ Crosstalk:> 26dB @ 1000 Hz
■ FIM: <0.5%
■ vertical tracking angle: 23 ° ± 3 °
■ proper needle pressure: 2.3 ~2.4g
■ eff mass at the needle tip:. 1mg approx.
■ tone arm mounting dimensions: 1 / 2inch with pins
■ internal impedance: 20Ω (1kHz)
■ Recommended load impedance: 200 ~300Ω
■ Compliance: 15μm / mN
■ stylus: SFL tip
■ its own weight: 18g
■ Recommended tone arm effective mass: 15 ~35g

Further information available at the manufacturer website or alternately please give us a call or email to discuss your needs or organise an audition.
