EMT Novel Gold
EMT Novel Gold
MC Phono Cartridge
EMT Novel Gold

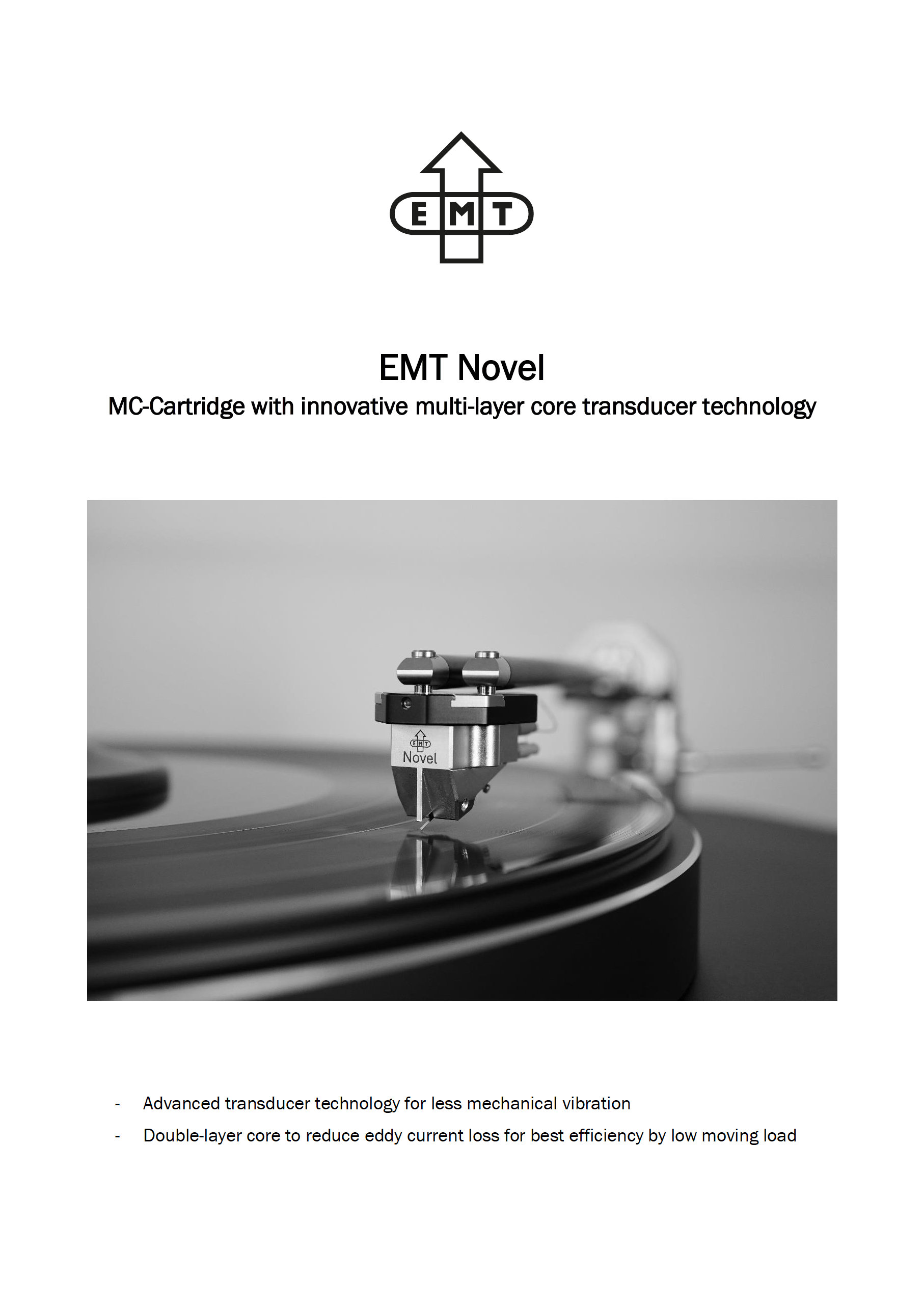

All EMT Novel products are equipped with the innovative EMT multi-layer core transducer with titanium/sapphire cantilever. Incredible realistic performance is achieved, while at the same time the tried and trusted EMT typical specs are respected.
The JSD Novel Gold features a high-density body and pure gold coil for rich and harmonic audio experience. The matt surface gold plated.
SPECIFICATIONS:
MR HP
Titanium / Sapphire
EMT multi layer core technology
Pure Gold
AlNiCo, gold-plated
High densitiy, gold plated
1/2" – 4pin
23°
18g
2,1g
1mV @ 5cm/s
12µm/mN
20 - 30‘000Hz
2x 20Ω
100 - 200Ω
Diamond:
Cantilever:
Transducer:
Coil:
Magnet:
Body:
Connection:
Vertical Tracking Angle:
Weight:
Tracking force:
Output voltage:
Compliance:
Frequency response:
Impedance:
Recommended load:
