EMT Novel Titan
EMT Novel Titan
A$12,995.00
MC Phono Cartridge
Quantity:
Novel Titan

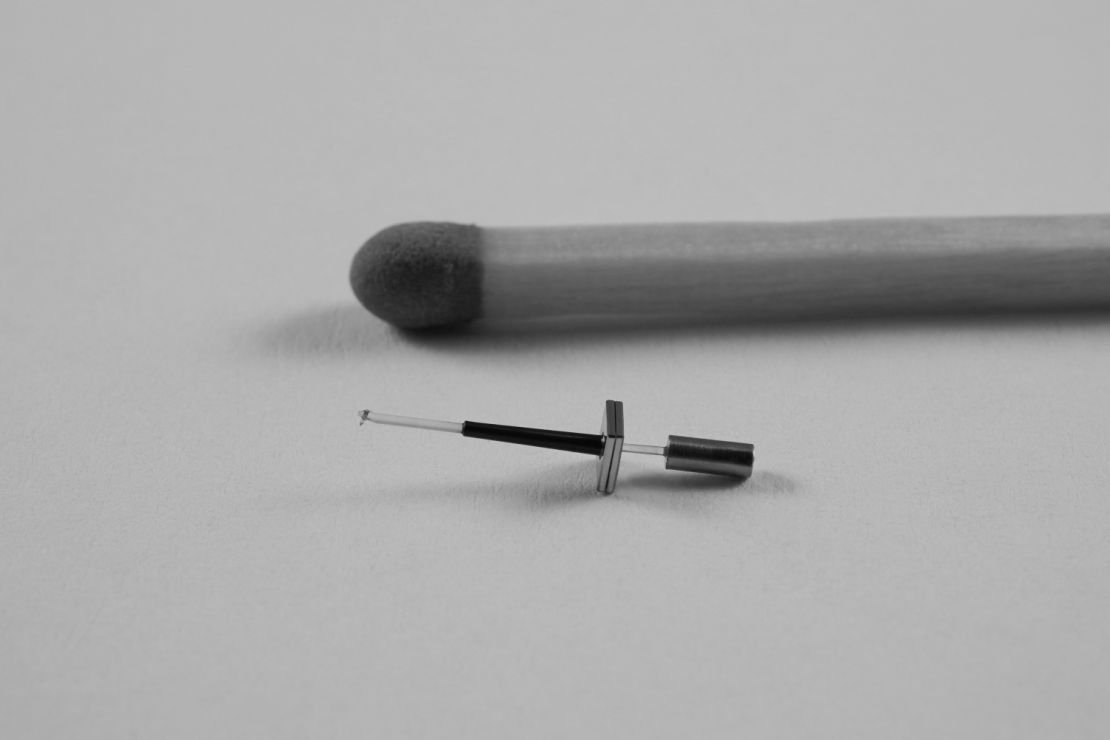

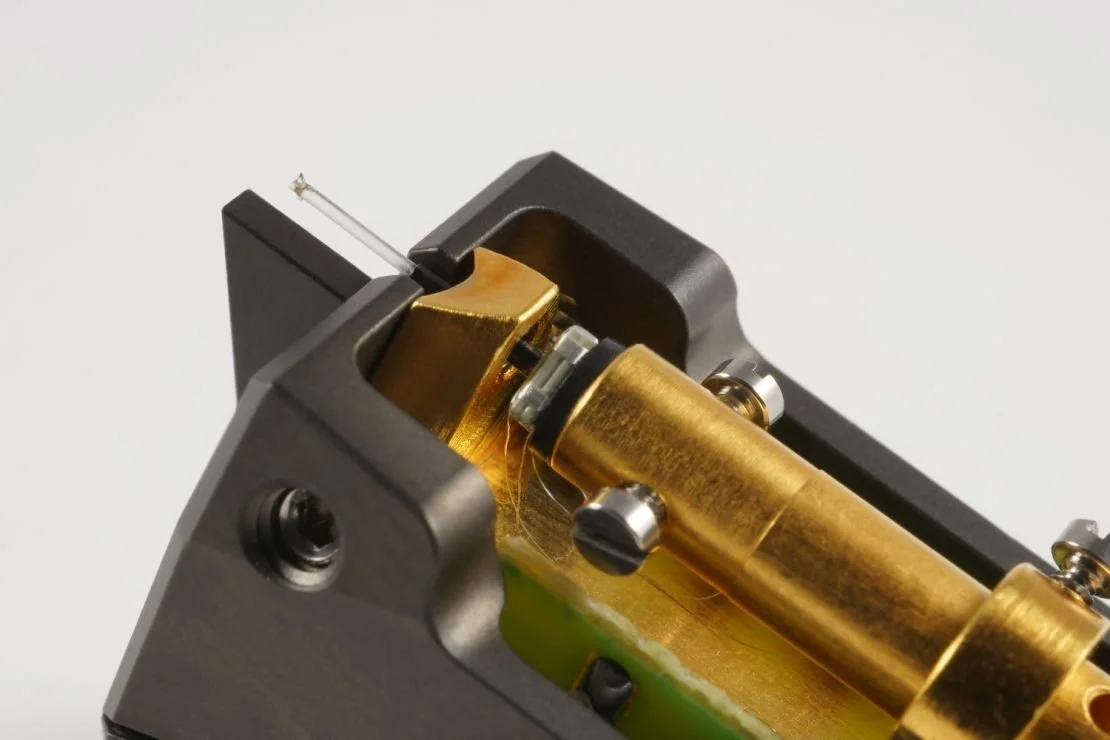

Based upon six years of electro-mechanical analysis EMT's new "Novel" moving coil cartridge line features a new multi-layer core transducer that includes a sapphire cantilever inserted within a coated high-strength titanium structure and a double-layer core designed to reduce eddy current loss. The stylus is a "multi-radial diamond.
Product Specifications
■ Model: JSD Novel Titan moving coil (MC) type phono cartridge
■ Output voltage:.. 2 x 1.0mV @ 5cm/s
■ Frequency Response: 20 ~30,000Hz
■ Vertical Tracking Angle: 23 ° ± 3 °
■ Recommended Tracking Weight: 2.3 ~2.4g
■ Internal impedance: 20Ω (1kHz)
■ Recommended load impedance: 200 ~300Ω
■ Compliance: 12μm / mN
■ Stylus: MR
■ Weight: 13g
Download JSD Novel Series Launch Brochure
