X-Quisite ST
X-Quisite ST
MC Phono Cartridge
X-Quisite ST
All X-quisite cartridges take advantage of the patented monobloc-ceramic transducer technology, which ensures supreme detail resolution and at the same time extremely natural sound. The ST (Silver/Titanium) model features a pure silver coil which has been carefully matched with an advanced titanium-aluminium-wood sandwich-body to achieve most delightful sound characteristics. Each X-quisite cartridge is handmade piece by piece and calibrated by Micha Huber personally.
X-Quisite Features
Monobloc-ceramic transducer
This patented technology is unique in history of MC-cartridges and allows supreme detail resolution and at the same time an extremely natural sound. It took us more than three years to solve all problems in manufacturing this micro part and we carefully protect the secret in how we do it.
Coil
The coil material - copper or silver with high purity grade - defines the tonal characteristic of the different X-quisite models. The winding technology is specifically adapted to the ceramic coil-body.
Magnet circuit
The ironless coil-design of the X-quisite transducer requires a strong magnet circuit in order to achieve reasonable output voltage. It took us many prototype setups and listening sessions before we found the perfect solution to be a Neodym-Armco combination with special measures to reduce eddy current loss to an absolute minimum.
Holder
The magnet is entirely built into an aluminium-holder, ensuring the mechanical energy-flow between tonearm and transducer to be as direct as possible. Between tonearm and cartridge, a carefully matched wooden inlay balances the resonance-properties of the contact area.
Body
The body is milled out of a massive block and its material is sonically carefully matched to the characteristic of the different models.
Packaging
The X-quisite cartridge comes carefully packed in a wooden box, made of a walnut tree, grown in our closest neighbourhood in the Tösstal.
Specifications
Cantilever and coil body: Monobloc ceramic unit, patented design
Coil: Pure silver 4N
Diamond shape: Micro ridge
Magnet unit: Neodym-Armco, reduced eddy current loss
Body: Titanium-aluminium-wood
Connection: 1/2" – 4pin, gold plated
Vertical Tracking Angle: 20°
Weight: 16,6g
Tracking force: 1,9…2,1g
Output voltage: 0,4mV @ 5cm/s
Compliance: 12µm/mN
Frequency response: 20 - 30‘000Hz
FIM distortion: max. 0,2%
Impedance: 2x 20Ω
Recommended load: 400 - 800Ω
X-quisite Monobloc Ceramic Transducer Technology

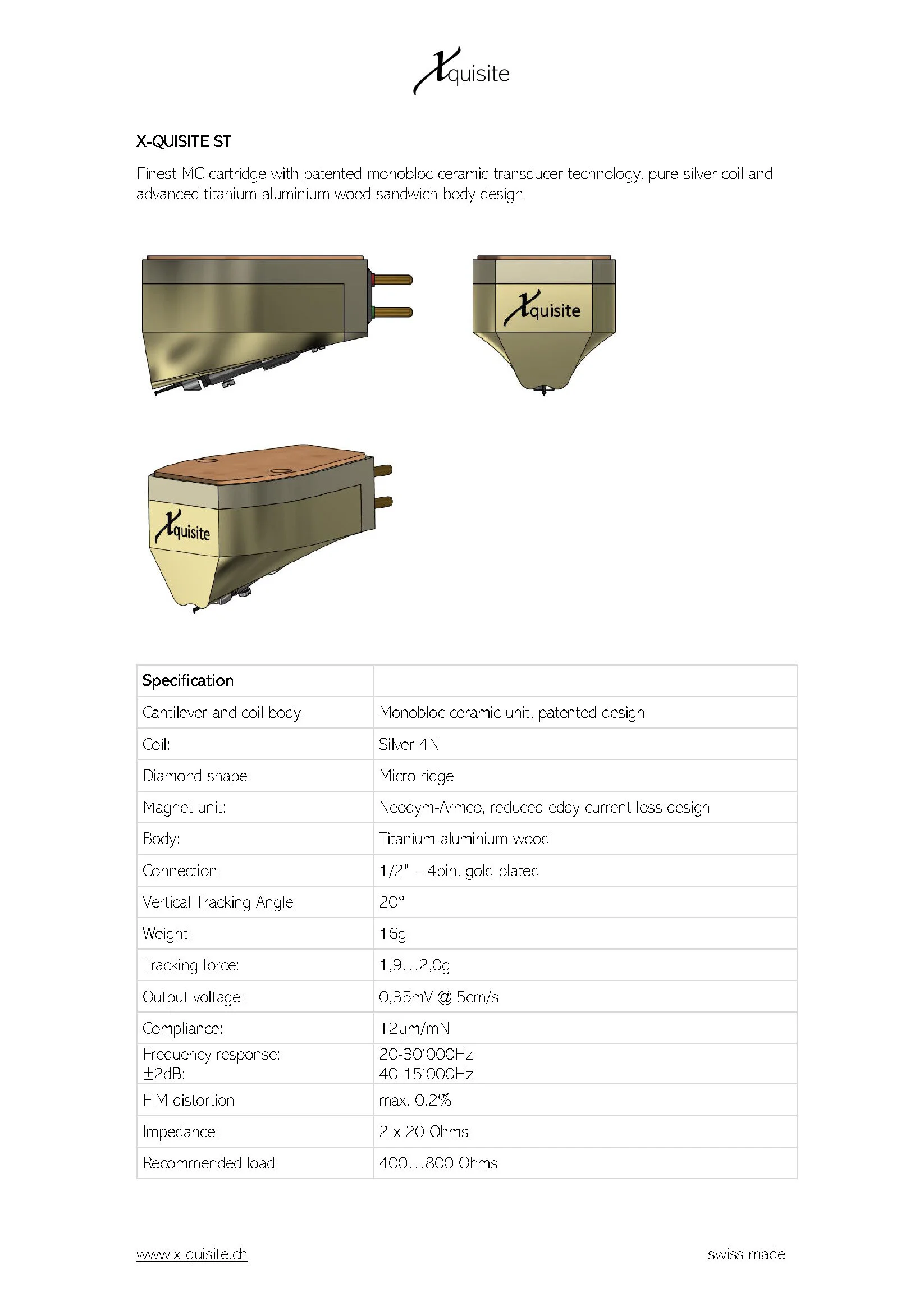

Download X-quisite ST Specifications
