AUDIONET PLANCK
AUDIONET PLANCK
CD Player / D/A Converter
AUDIONET PLANCK
PLANCK is Audionet’s final statement re: the classical compact disc. PLANCK surpasses the worldwide success of VIP and ART.
The body construction completely made of non-ferromagnetic materials combined with a massive slate board optimizes the resonance characteristics of PLANCK. The new design with non-visible fixation screws and with a massive and solid aluminium cover pleases both eyes and ears alike.
Converting from digital to analog, newly developed discrete output modules with extremely fast, wide-band high-performance class A output drivers ensure the perfect sonic experience. The current-voltage converter comprises absolutely temperature stable and sonically neutral high-precision resistors.
A high-precision clock generator eliminates the infamous jitter: PLANCK gets all music data at the right time and with its correct value. And the internal frequency compensation equipped with custom made mica capacitors of highest grade guarantees absolute precision in the analog domain.
Audionet, also gave the digital input section a completely new design. PLANCK uses the same outstanding USB Audio 2.0 technology as Audionet’s famous DNx machines:
- USB Audio 2.0 support up to 192 kHz / 24 bits.
- Asynchronous data connection and re-clocking ensuring a clean digital music signal.
- The USB Audio circuitry is completely galvanically isolated from the rest of the PLANCK. Therefore no harmful reactions apply from the PC and its “dirty” power supply.
- Separate and user-selectable electrical and optical digital inputs (SPDIF) – also using DNx technology and up to 192 kHz / 24 bit for enhanced playback of other digital sources.
Features
- Top loader, decoupling aluminium and slate body construction.
- Massive aluminium body, resonance-optimized fixation with invisible screws and Teflon bedded massive disc drawer cover made of 10 mm aluminium.
- Additional decoupling of the drive unit, PCBs and high precision clock generator by Audionet Aligned Resonance Technology.
- Reference drive unit CD-PRO 2LF on 8 mm Aluminium base.

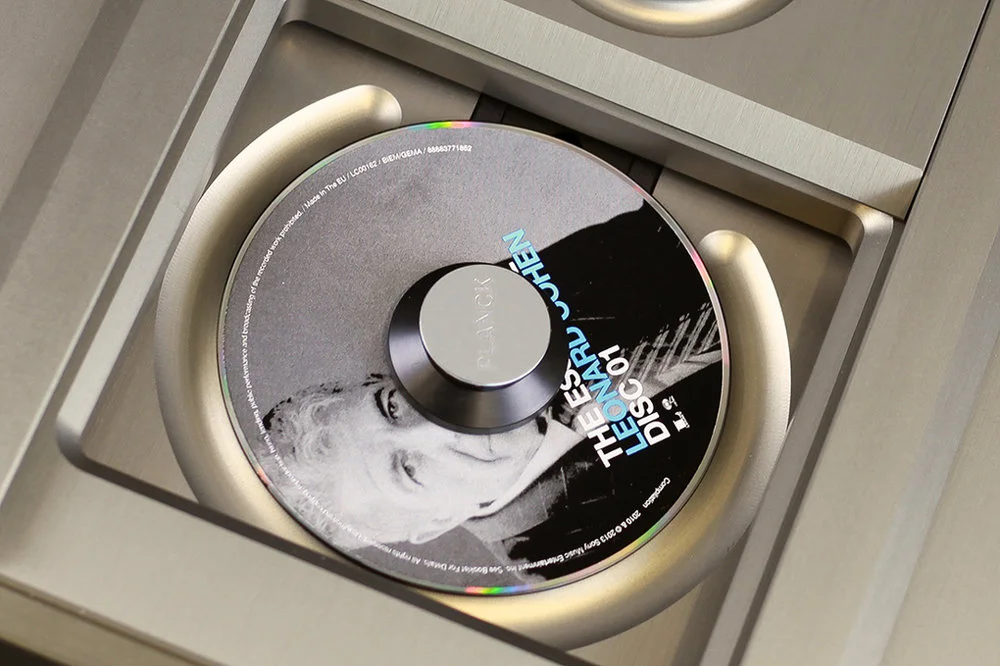

- Adaptive high precision puck and puck mounting made of POM, toroid Neodym magnet.
- Completely separated power supplies for pickup and converter unit, digital and analog section.
- Completely DC-coupled, no capacitor in the signal path.
- Newly developed discrete output modules with extremely fast, wide-band high-performance Class A output drivers.
- Current-Voltage converter with absolutely temperature stable and sound neutral high-precision resistors and with custom made mica capacitors of highest grade for internal frequency compensation.
- D/A converter function with separate and user-selectable digital inputs: SPDIF electrical (Cinch) and optical (Toslink) as well as USB Audio 2.0 (USB type B socket).
- All digital inputs up to 192 kHz / 24 bit.
- Digital outputs SPDIF (electrical and optical) and AES/EBU output 44.1 KHz / 16 bit (for CD).
- Disengageable digital outputs.

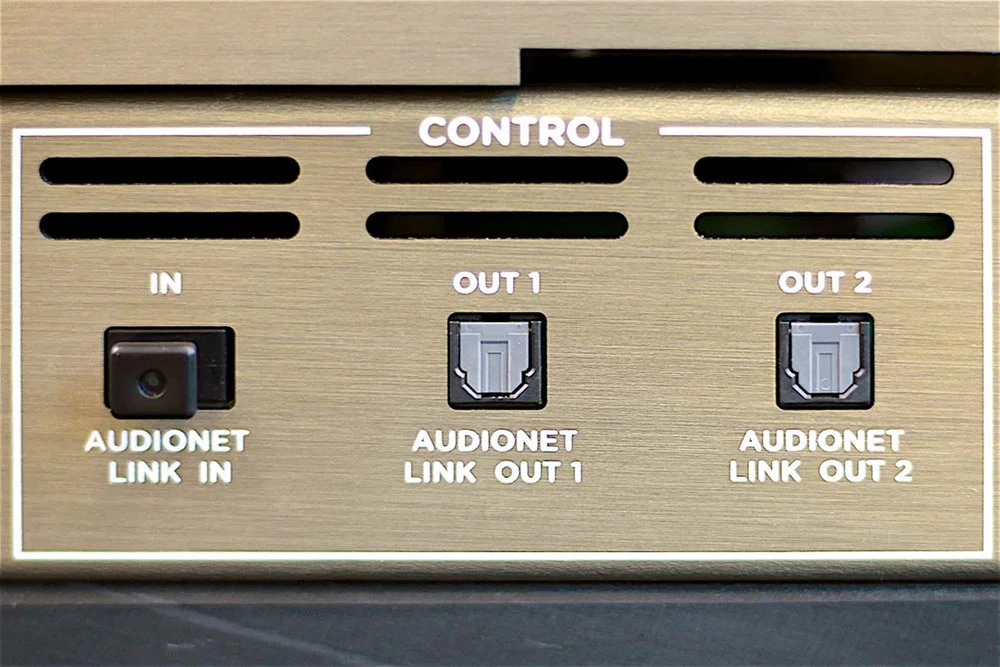

- Remote power on/off via Audionet Link (optical cable).
- Professional concept of operations.
- Rhodium fuse.
- Audionet metal remote control RC 1.
SPECIAL FEATURES
- Audionet Metal Remote Control RC 1 (included).
- D/A converter with USB Audio 2.0 / SPDIF digital input (electrical & optical).
- Toploader, aluminium and slate casing.
- Massive disc drawer cover made of 10 mm aluminium, Teflon-bedded.
- Decoupling of the transport unit by Audionet Aligned Resonance technology.
- Special stabilizer made of POM.
- Separate power supplies for digital and analog sections.
- Audionet Intelligent Sampling technology.
- Discrete, extremely fast and stable filter and output stages.
- Fully DC coupled, no capacitors in the signal path.
- Disengageable digital outputs.
- Capable of de-emphasis processing.

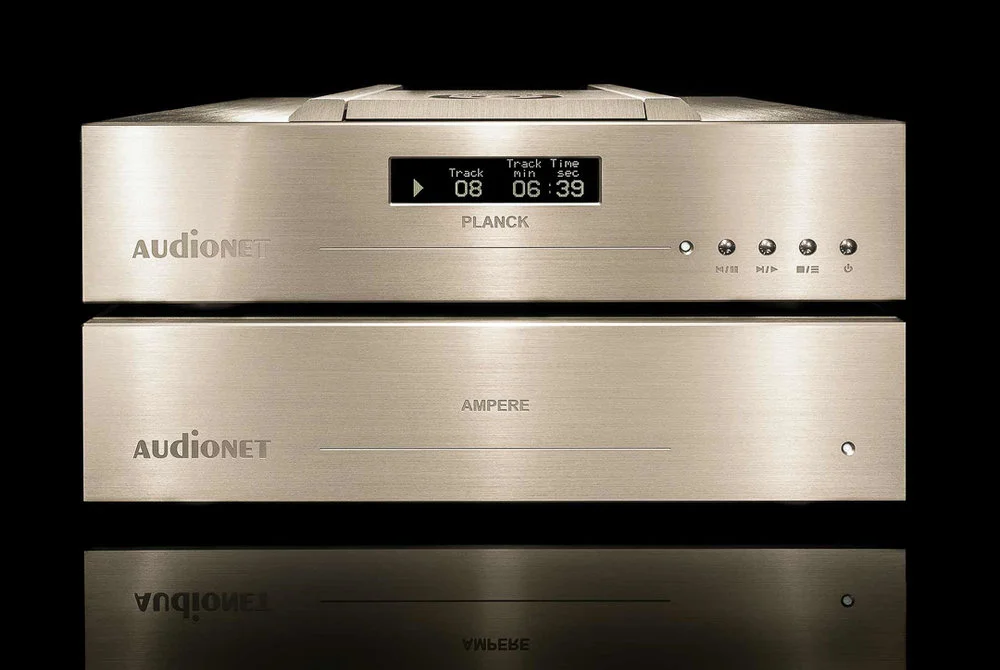

- Optional external power supply Audionet AMPERE for the analog section.
Further information available at the manufacturer website or alternately give us a call or email to discuss your needs or organise an audition.
