ATC SIA2-100

ATC SIA2-100 Integrated Amplifier
ATC SIA2-100 Integrated Amplifier

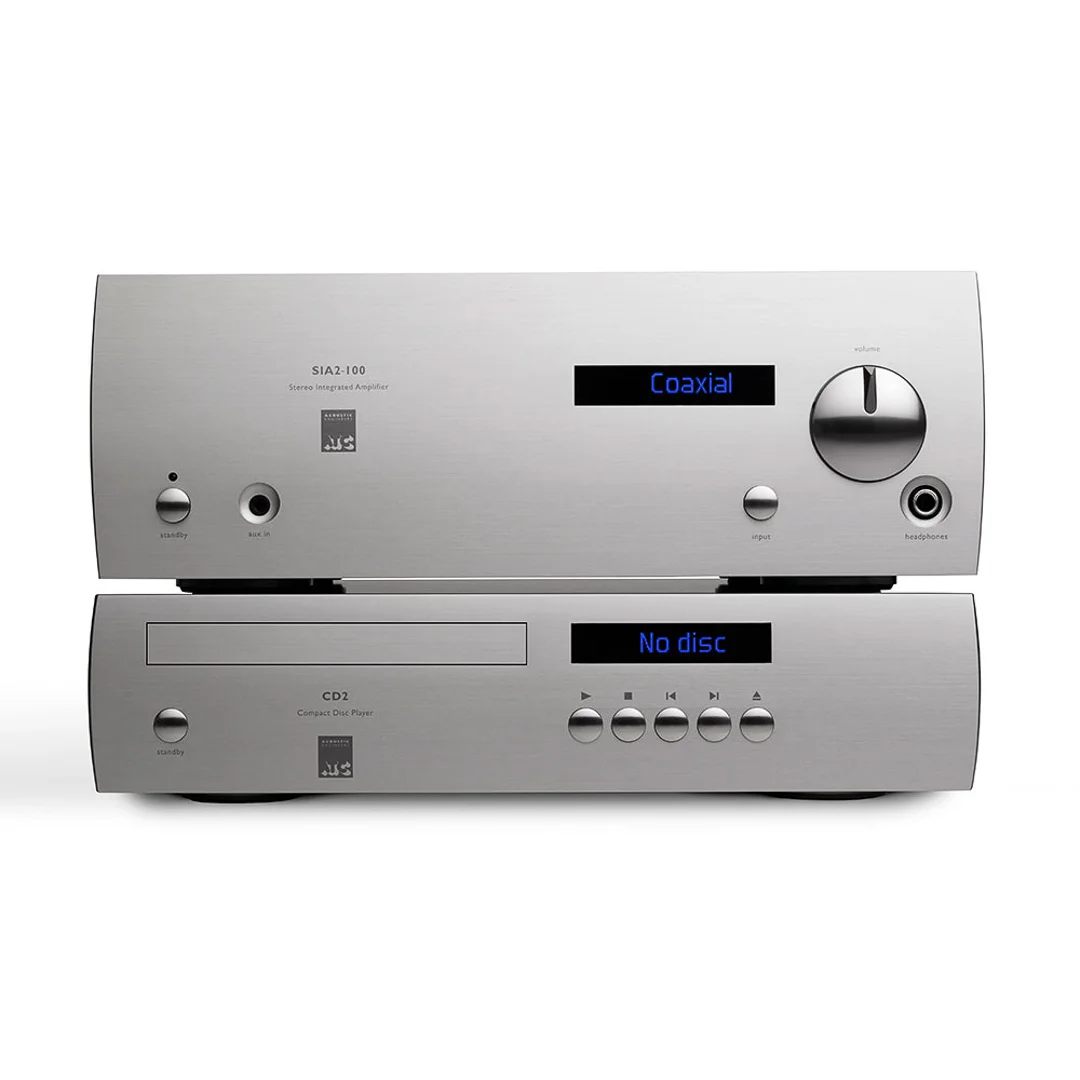

ATC SIA2-100 CD2
ATC SIA2-100 Integrated Amplifier
ATC SIA2-100 Integrated Amplifier
ATC SIA2-100 CD2

ATC SIA2-100

4,700.00

Integrated Amplifier / DAC

Quantity:
Add To Cart

SIA2-100

Overview

  • 2 x line level analogue inputs

  • 3 x digital inputs: USB, Coaxial, TOSLINK

  • Premium AKM 32-bit DAC

  • USB digital input supports up to 384kHz PCM data
    and native DSD256*

  • ATC Discrete MOSFET Output Stage with
    100W/Ch. Max. Cont. Power.

  • Headphone amp featuring discrete output stage

  • Compact Size – 2/3rds width

  • Handmade in England

  • 6 year warranty

*DSD256 support via PC only (up to DSD128 via Mac).

Specifications

Maximum Power Output: 100W (Continuous Av. 8 Ohms, 1kHz, both channels driven)
Line Inputs: Two, stereo (one with additional front panel 3.5mm jack)
Line Input Sensitivity: 500mV
Input Impedance: 13k8 Ohms
Line Outputs: One, stereo
Overload Capacity: 13dB
Line Output Impedance: 10 Ohms
Frequency Response: < 2Hz – > 250kHz (@ -3dB)
Total Harmonic Distortion: 1kHz <0.0015% (-96dB), 10kHz <0.002% (-90dB)
Crosstalk: >80dB (10Hz – 20kHz)
S+N/N Ratio: Wide Band > 96dB, DIN > 108dB, > IEC “A”112d
Dimensions (HxWxD): 113 x 315 x 315mm / 4.4 x 12.4 x 12.4”
Dimensions exclude rear panel connectors. Take care to leave space behind the unit for connectors and cables.
Weight: 9.70kg (24.39lbs)

DIGITAL INPUTS – COAXIAL & OPTICAL

Distortion: 1kHz <0.0015% (-96dB ), 10kHz <0.005% (-86dB)
Frequency Response: 20Hz – 20kHz (+/- 0.1dB)
S+N/N Ratio: >100dB (IEC “A”)
Word Lengths Supported: 16 – 24 Bit
Sample Rates Supported: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 192kHz (192kHz supported via coaxial input only)

DIGITAL INPUTS – USB (PCM)

Distortion: 1kHz <0.0015% (-96dB ), 10kHz <0.005% (-86dB)
Frequency Response: 20Hz – 50kHz (+/- 0.1dB)
S+N/N Ratio: >100dB (IEC “A”)
Word Lengths Supported: 16 – 32 Bit
Sample Rates Supported: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96.0kHz, 76.4kHz, 192.0kHz, 352.8kHz, 384.0kHz

DIGITAL INPUTS – USB (DSD)

Frequency Response: 10Hz – 50kHz (+/- 0.1dB)
S+N/N Ratio: >100dB (IEC “A”)
DSD Rates Supported: Windows DSD64, DSD128, and DSD256, MAC OS DSD64 and DSD128
ATC reserves the right to vary products and specifications without prior notice.


Further information available at the manufacturer website or alternately give us a call or email to discuss your needs or organise an audition.
