Western Electric 91 E
Western Electric 91 E
Western Electric’s new flagship integrated amplifier achieves nearly double the power out of their world renowned 300B valves than its predecessor. the 91 E is made for listeners who demand the absolute finest in tube sound
Western Electric 91 E
Introducing Western Electric’s flagship integrated amplifier. The 91E is the latest advancement in single-ended sound, energized by its famous predecessor the WE 91A.
At nearly double the power, you’ve never heard the 300B like this before. A new level of performance has been achieved with a completely new approach to SE amplifier design. The 91E’s circuitry intelligently steers the parallel feed constant current source (SCCS), allowing the tubes to deliver more than double their previously rated output of 7-8 watts.
Double the Performance
Full-throttle tube sound, made possible by patented smart SE circuit design
Inspired Originality
The first original product by Western Electric in over 15 years, continuing a proud legacy of quality, American manufacturing
Don’t Forget the Tubes
The 91E ships with new production 300B’s, the most popular vacuum tubes in the world.
Features
The Western Electric Type 91E is a Class A, single-ended (SE), integrated amplifier for high-fidelity audio reproduction.
The 91E was made for the Western Electric 300B to provide end users the highest possible performance and quality.
In the box
91E Integrated Amplifier
Remote control
Pin-Straightener (9-pin)
2x 300B Electron Tubes (Power)
2x ECC81 Electron Tubes (Pre-amplifier, pre-installed)
8 Ω Output Transformer Block (pre-installed)
Power Cord
Spanner tool (for removal and/or replacement of 300B’s)
BT antenna
End User Guide
Steered Current Source Technology (SCS)
The 91E uses Western Electric’s patented steered current source technology. The unique parallel feed topology contributes half of AC current to the plate (anode) of the 300B by modulating quiescent current. As a result, half of the power dissipation occurs in the tube, allowing for a greater output power of 20 watts per channel.Stepped Logarithmic Attenuator
A stepped logarithmic attenuator is used to mimic the response of human hearing. The attenuator consists of only discrete resistors in a ladder configuration that are switched in and out of circuit to produce a logarithmic attenuation of the output signal.Interchangeable Transformer Block

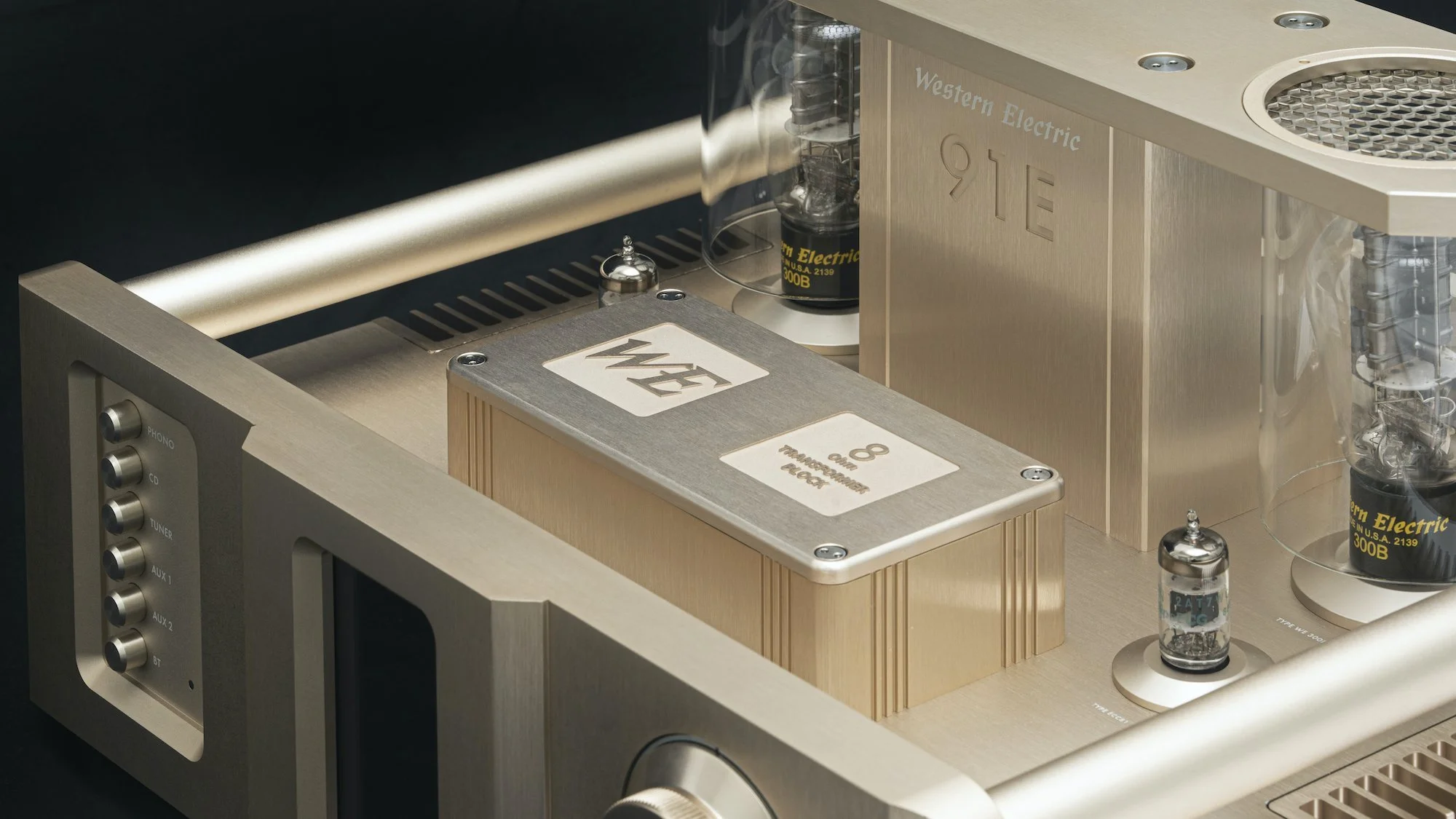

The standard 8-ohm transformer block can be interchanged with the optional 4-ohm version. This feature is unique to the 91E Integrated Amplifier. Single impedance transformers maintain lower winding capacitance normally vitiated with multiple tap transformers.LCD Display
A bright and easy to read color display shows the selected input, attenuator level, and VU meter. The display also shows settings which can be adjusted by the included remote control. The display is dimmable.Remote Control
The included infrared remote control allows for quick adjustment of amplifier settings such as input levels, balance, and display dimming.Six Audio Inputs
Up to six (6) source devices can be connected during amplifier operation.Auto-Bias
Microprocessors automatically bias the 300B tube pair each time the amplifier is powered on. No manual adjustment is necessary.BT Compatibility
BT compatible audio input is available for wireless convenience.Software & Firmware Updates via Ethernet Connection and USB

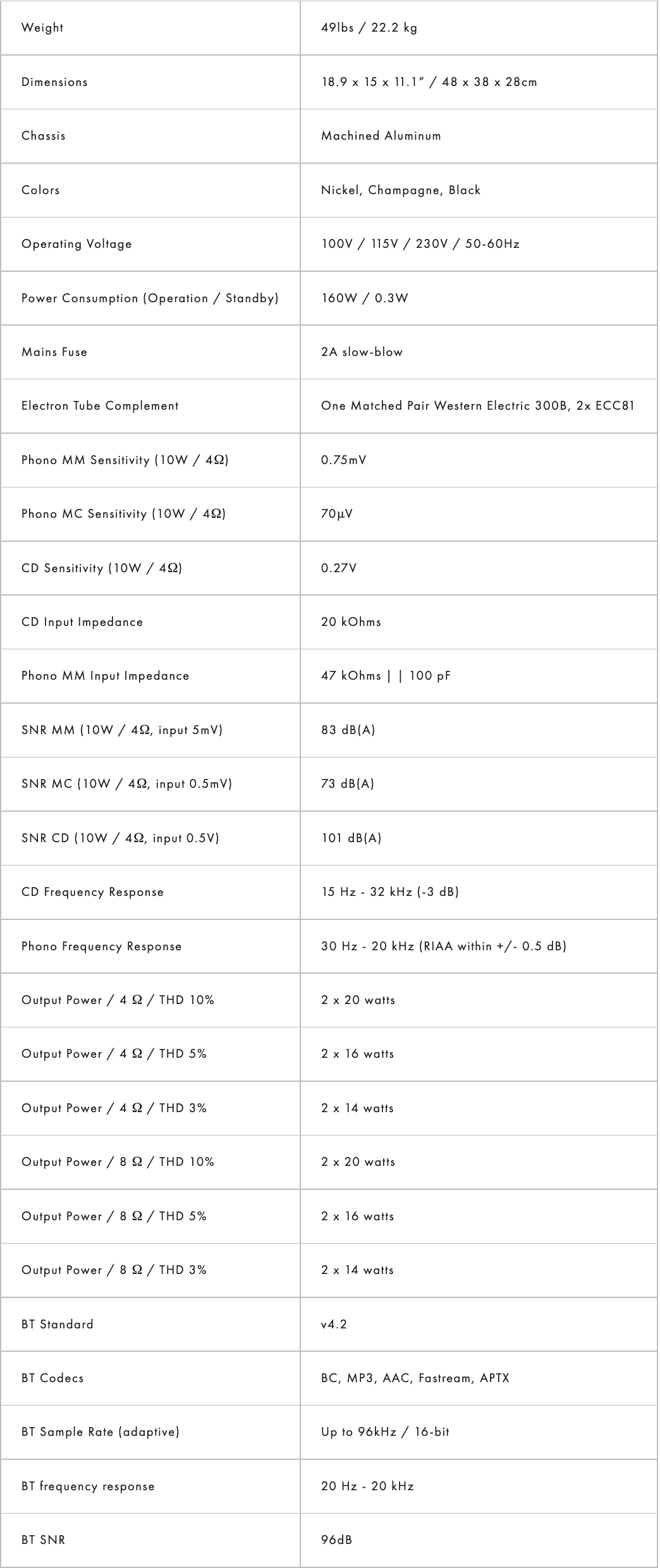

Specifications
