Product Outline and Concept

With the mindset that analog playback still has room for improvement, Phasemation have expanded the numerous product line-ups and phono amplifiers due to non-feedback circuits for lovers of analog records.
Phasemation’s EA 550 eliminates any small inexactness, as a 2 unit box with Lch and Rch being independent and completely monaural. The built-in MC transformer was newly designed with a special split winding structure that uses a pure copper wire PC-TripleC as the secondary winding material.

The EA-550 has been released to allow audiophiles to experience a new level of sound along with a refinement on the circuit.

Features

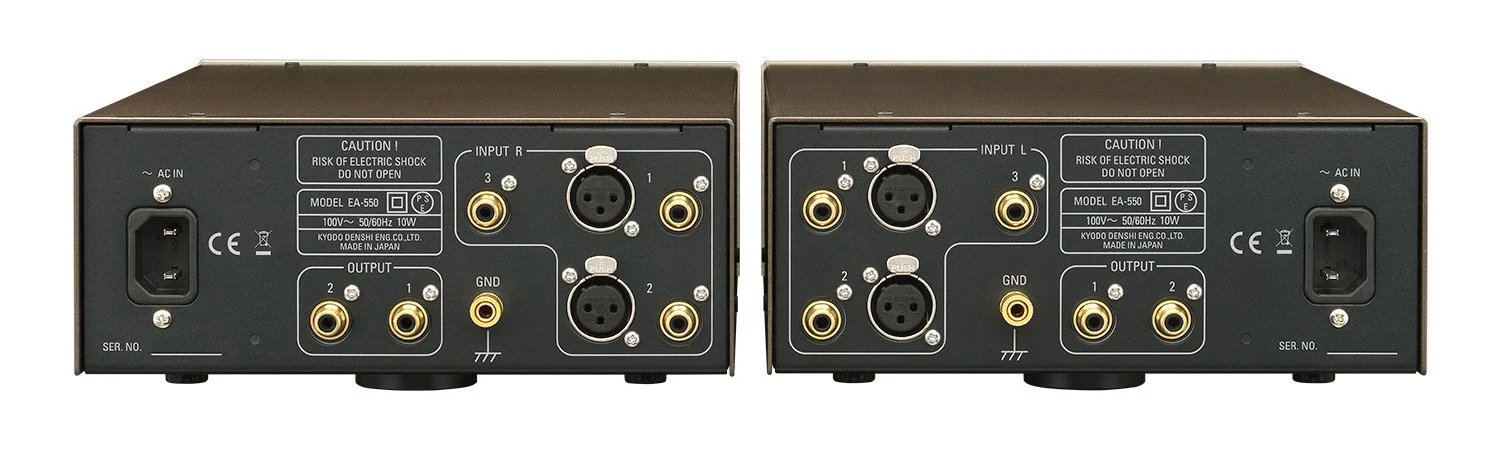

2 unit box with Lch and Rch and an elegant and strong chassis

Following the elegant design of CA-1000 / T-2000, a strong housing structure consisting of a 10mm thick aluminum slant front panel, a 1.6mm thick copper plated steel chassis base and a 1.6mm thick copper plated steel sheet cover was adopted and this ensures rigidity and reduces magnetic deformation.

A heavy weight metal insulator that blocks external vibrations is used for the feet.

In addition, the played sound supported by the left and right divided equalizer part and the powerful power supply part has high S/N and high resolution.

The played sound can be enjoyed with overwhelming realism and with a panoramic stage.

V-I / I-V conversion type full-stage symmetrical non-feedback amplifier circuit due to all discreet parts

The negative feedback amplifier which is the mainstream of modern amplifiers constantly compares the input and output signals for both the semiconductor and vacuum tube and this difference (amended signals) can be amplified with high precision at low cost because it is amplified as an input signal. However, there is a time delay between the input and output signals which cannot be solved theoretically and this generates a TIM distortion and the like and Phasemation believe this is a big reason why sound satisfaction cannot be attained from negative feedback amplifiers.

At Phasemation, amplifiers of semiconductors and vacuum tubes are all composed of non-feedback amplifiers. For non-feedback amplifiers, there are no amending operations like the negative feedback amplifiers and therefore high precision/technology of structured parts and circuits are required.

As a result, it is played with no information remains on the sound source (record) and in terms of sound quality, it can play the music with excellent inspiration, dynamics, and shadowed (or the like) expressions.

Main Features

1. Three input terminals are equipped and MM/MC switching is possible for each. In addition, inputs 1 and 2 support balanced inputs due to the XLR connector.

2. A 2nd order CR type low cut filter with non-feedback is equipped.
   Plays warped phonograph records without any music deterioration and prevents the speakers (woofers) from shaking.

3. Three types of playing curve changeover switches are equipped.
   For the equalizer characteristics, along with the RIAA characteristics for the previous stereo, Mono1 (used on the DECCA label and so forth) and Mono2 (used on the Colombia label and so forth) are equipped as a particular characteristic for a monaural. This will allow higher fidelity playback than the DECCA and Columbia labels.

4. A "degaussed" circuit is equipped.
   By choosing “degauss” with the functions and playing the record for about 30 seconds, the MC cartridge with a metal core that was magnetised is degaussed and the sound quality becomes clear.

Adoption of Parts Having High Sound Quality

1. On the signals

A) A 1% grade metal film resistance with marginal rated capacity and reputed high sound quality parts such as a Micar capacitors using silvered Micar plates for dielectrics are used on the RIAA elements which have high influence on the phono amp's sound quality (for only selecting STEREO on playback curve)

B) On the signals, ELNA’s SILMIC audio grade electrolytic capacitors for sound quality and metal film resistance of a 1% grade are used.

2. On the power circuits

A) The switching noises are few and adopts Rohm’s SiC diodes which have a reputation for high sound quality.

B) Phasemation adopted a large-volume electrolytic capacitor that is of highest rank in audio grades of metal plated terminals which uses Nichicon’s low resistance electrode foil on the commutating capacitor. In addition, the decoupling capacitor adopts ELNA’s SILMIC II.

C) Low noise zener diodes are used combined with the adoption of shunt regulators that exclude the feedback circuit and this structures a fast and extremely low noise power circuit.

D) The power transformer uses a transformer of low leakage flux using an R-core particularly for each of the positive and negative power supplies, a total of 4. It eliminates negative effects due to the common impedance of the ground (earth) from each bridge rectification.

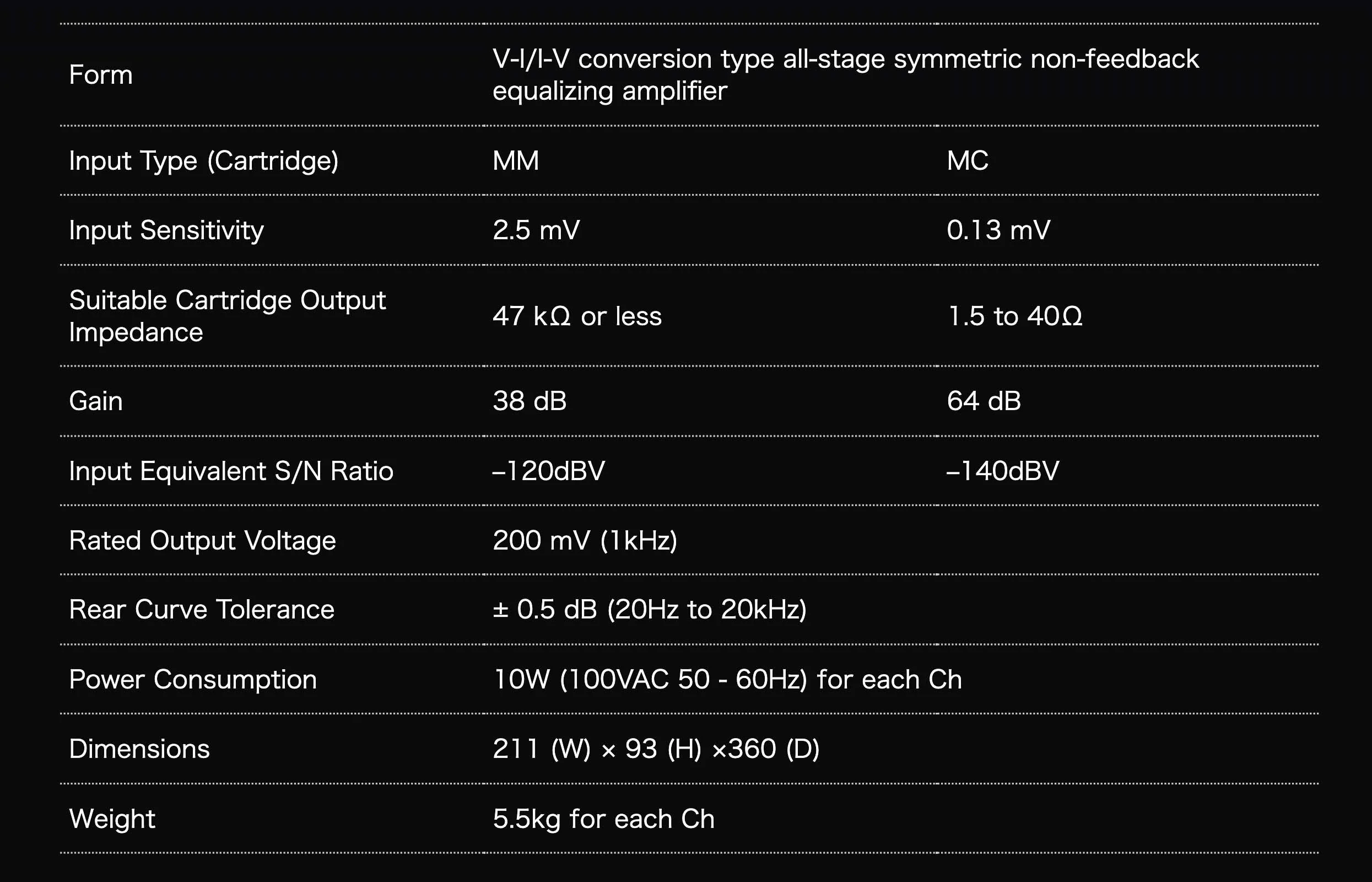

SPECIFICATIONS
