Preamplifier

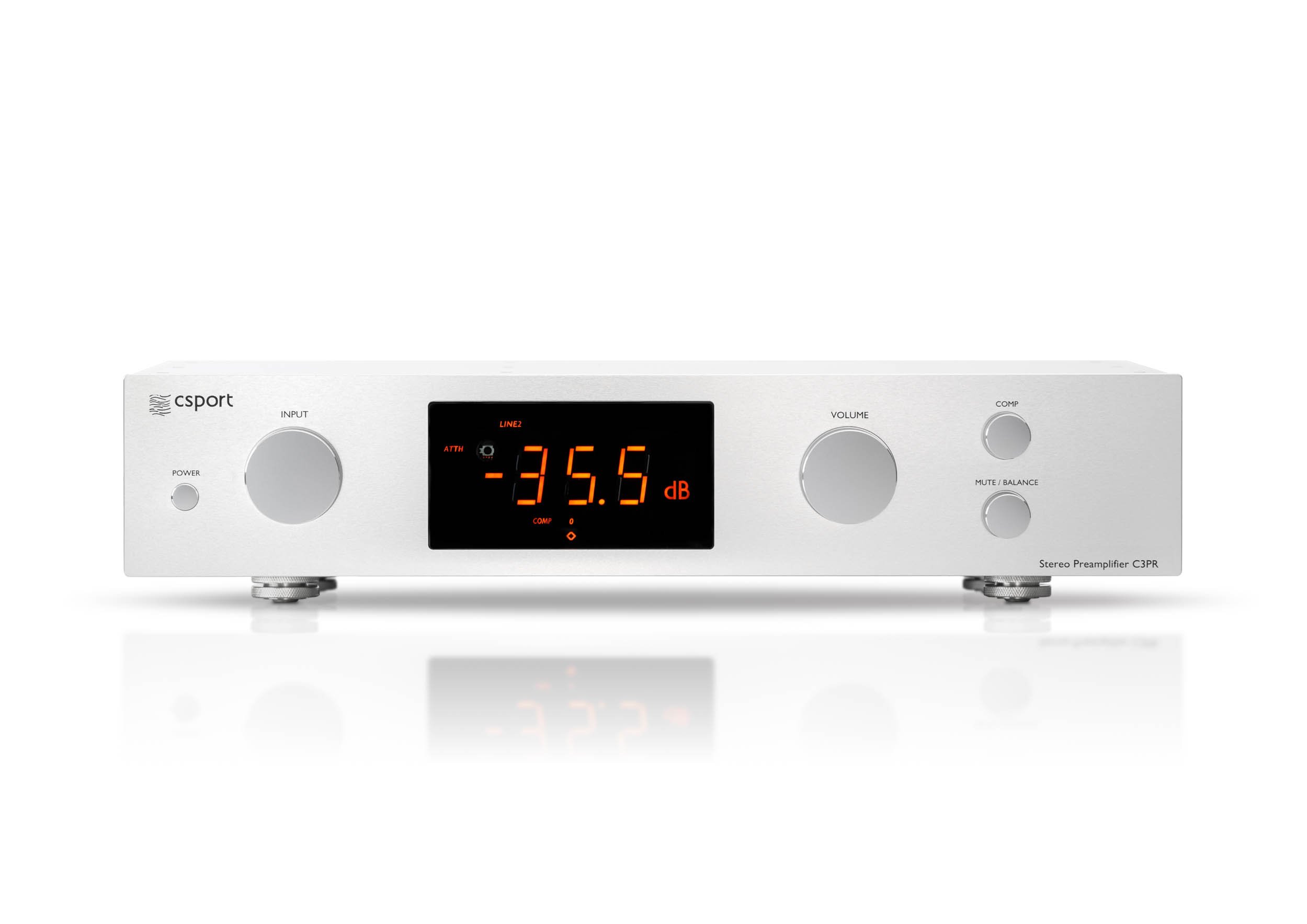

CSPort C3PR
Tube type preamplifier with reliable tube C3g. High ability to eliminate common mode noise due to noise processing technology based on power supply development culminating in extremely low noise floor.

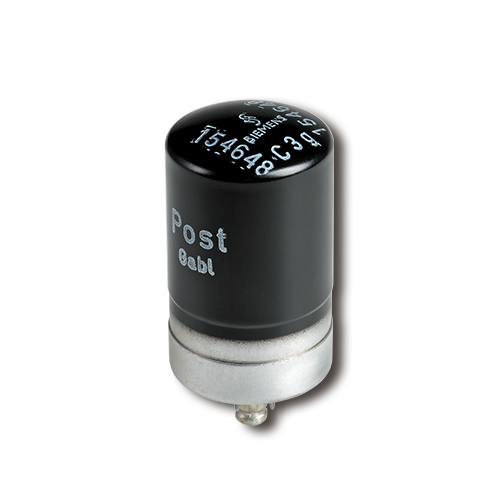

Equipped with C3g
Equipped with the ultra-reliable C3g developed by Deutsche Telekom for telephone repeaters. The thin grid lines and large distance between electrodes enable high linearity amplification. The C3g is soldered directly onto the board to reduce noise at the contact point.
Proprietary in/out transformers
Proprietary transformers are used for the input and output. The transformer is an important part that influences the performance of distortion, S/N ratio and input/output impedance. Therefore, the core material, wire material, winding thickness, and winding ratio are meticulously designed and manufactured.

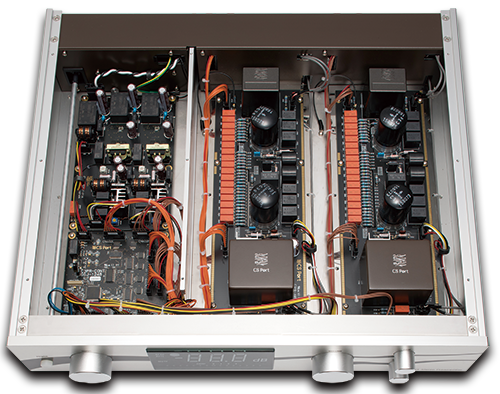

Left/Right independent power supply
Independent power supplies deliver power to the left and right channels as well as control circuits. Using all of the characteristics of the components together, the C3PR preserves an incredibly low noise floor.
Resistance switching ladder attenuator
In a variable resistor that slides on a resistor, noise is generated by a point-contact diode, which can be a source of distortion. This unit is a crossbar twin structure. A gold and platinum contact relay switches the resistance and attenuates from 0 dB to -60 dB.

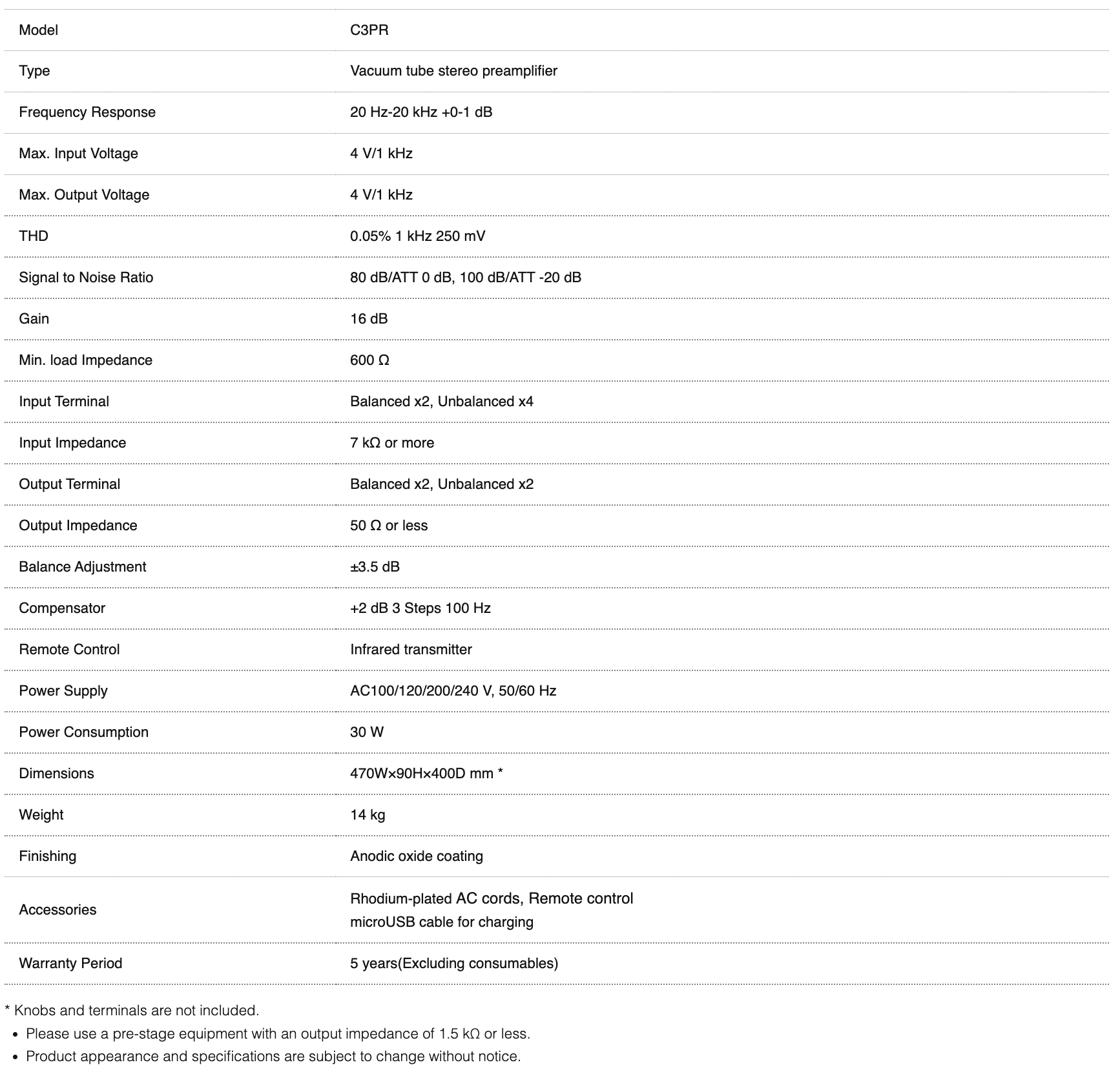

Specifications
Download CSPort Amplifier Brochure

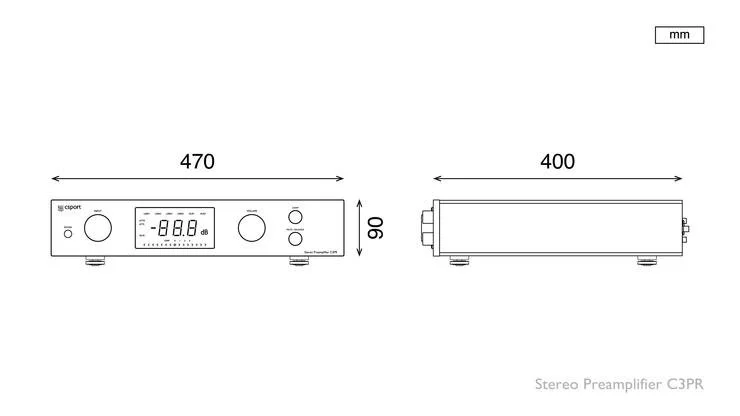

CSPort C3PR Dimensions
