STOGI S 12” VTA

This is a  Stogi S 12 inch version tonearm  with a  fully precise adjustable VTA tower fitting on the standard 9 inch  tonearm distance. The Stogi S 12 VTA tonearm shares the main features of Stogi S & Stogi S 12 and 4Point  tonearms, i.e. a unipivot bearing, headshell rigid construction and a unique VTA tower used in Kuzma’s best tonearms.

The whole construction is mounted on a rigid VTA tower which allows VTA ( vertical tracking angle)  adjustment while playing, without any loss of rigidity, yet with up to 0.01mm of precision with zero play and repeatability.

Tonearm fits standard size turntables, so there is no need to replace the turntable to experience the advantages of a longer tonearms and fine VTA adjustments.

Stogi S is a unipivot design with a unique, rigid headshell made from a solid aluminium block and a base of solid brass which controls all vibration and facilitates stability of the tonearm as a whole. All parts of the arm are machined from blocks of solid metal, in order to provide damping and minimize resonance. The polished pivot point is sited in an oil well, which provides extremely low friction and bearing vibration. The height is at record level for optimum tracking. The silicone damping controls resonance of the cartridge and also gives stability in azimuth direction.

Two counterweights allow easy adjustments of tracking force and azimuth. Fine azimuth adjustment is achieved by rotation of a horizontal screw in the counterweight, which does not affect other tonearm parameters and which makes adjustment very simple.

Wires are in one uninterrupted piece from headshell to RCA phono connectors. By special order, wiring can also be fitted for balanced connections. Standard length is 1.5m, longer lengths upon request. Standard cable is 1.5m Cardas copper wire with Eichmann Copper Bullet plugs.

Technical Data:

Stogi S Versions Available:

• Stogi S standard 9" tonearm

• Stogi S12 long 12" tonearm

• Stogi S12 VTA long 12" tonearm with VTA tower, mounts in normal 9" position.

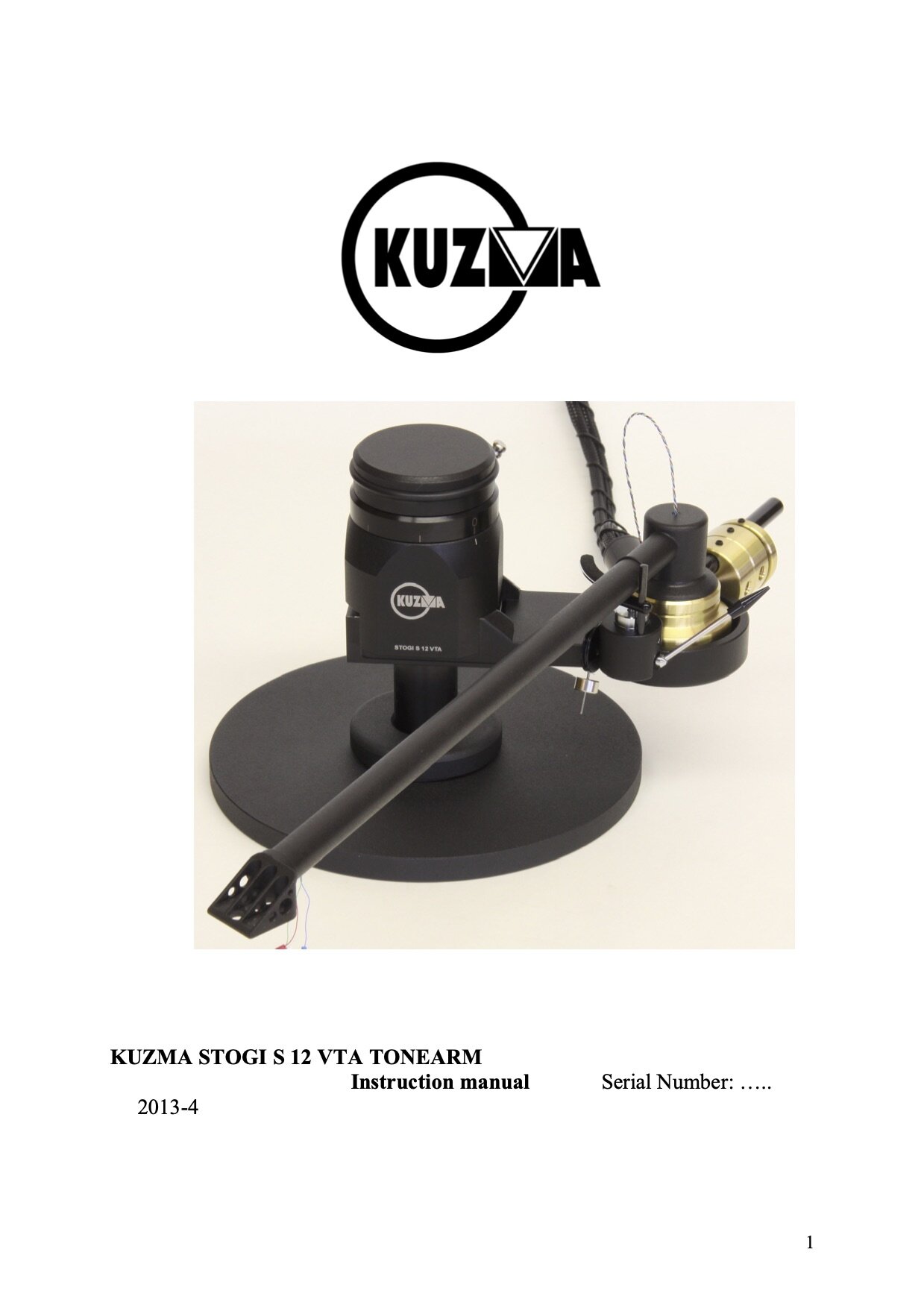

Downloads

Further information available at the manufacturer website or alternately give us a call or email to discuss your needs or organise an audition.
