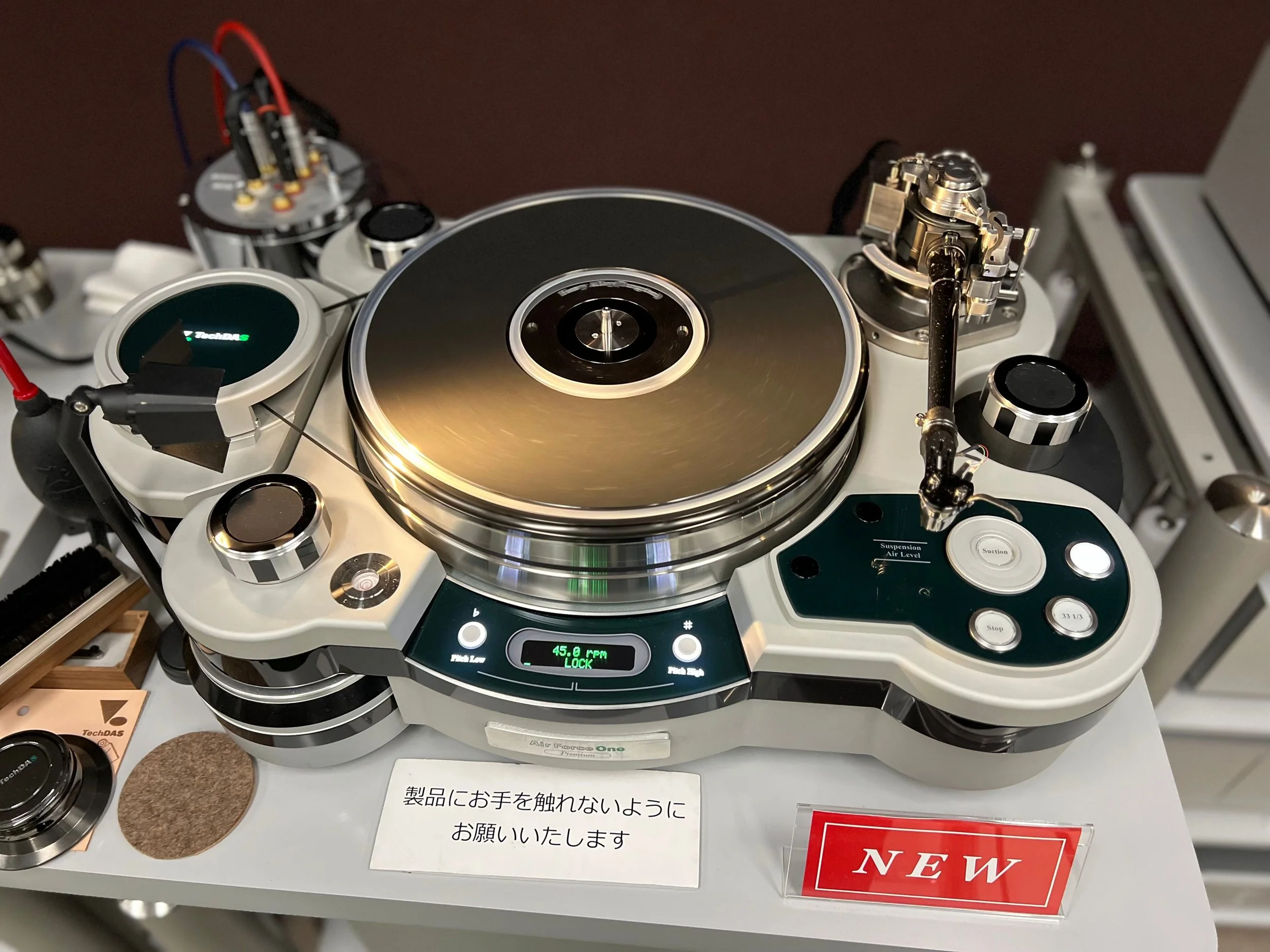

Techdas air force 10 tonearm
A world first Air Bearing Tonearm developed by the late Mr Hideaki Nishikawa.
Combining meticulously selected materials of titanium and tungsten, the Air Force 10 is a tour de force in mechanical engineering, a testament to Mr Hideaki Nishikawa’s life’s work dedicated to advancing the science and art of vinyl playback.
TechDAS Air Force 10 tonearm incorporates a culmination of innovative vacuum hold-down and air bearing technologies, which were originally developed for TechDAS Air Force turntables. Additionally, it draws upon extensive expertise in precision machining, particularly with titanium and tungsten materials.
“After dedicating nearly three years to the development and design of this new tonearm, we are thrilled to present a product that features an exceptionally smooth and precise motion, thanks to the advanced air bearing technologies. This breakthrough enables the faithful reproduction of even the most subtle details embedded within the grooves of vinyl records, immersing you in an unparalleled “you-are-there” feeling and experience.
Furthermore, the tonearm’s revolutionary arm tube and main body benefit from the exceptional damping characteristics of the exotic materials and finishes used in their construction. This damping capability ensures ultimate silence and faithfully conveys every piece of information captured by the cartridge, delivering an audio experience of unmatched quality.”
Anti-Vibration Design: Incorporates advanced vibration-damping materials to minimize unwanted resonances.
Cable Options: Features customizable cable options for audiophiles seeking to fine-tune their setup.
Compatibility: Designed for seamless integration with a variety of turntables, ensuring versatility and ease of use.This mechanically isolates the rotating platter and the record from any vibration. Additionally the vacuum hold-down system clamps an LP onto the platter itself.
Integrated concepts & technologies
Material: Precision-machined from high-grade materials of titanium and tungsten for optimal resonance control.
Bearings: Utilizes state-of-the-art ball bearing technology for smooth and precise tracking.
Adjustability: Offers a wide range of adjustable parameters to accommodate various cartridges and optimize tracking force.
BEARING MECHANISM
SPECIFICATIONS (10 inch)
Pivot to Spindle: 230mm
Effective Length: 248mm
Overhang: 18mm
Offset Angle: 23 degrees
Inner Offset: 96.9mm
Inner Null Point: 68.9mm
Outer Null Point: 124.9mm
Maximum Error: 1.4 degrees
Maximum Distortion: 0.95%
Average RMS distortion: 0.39%
Weight: 2.3kg
Horizontal: TechDAS Air Bearing Float System
Vertical: Tungsten Pivot and Ceramic Ball Bearing
ARM TUBE
Hybrid two layer structure
Outer: Magnesium alloy with DLC coating
Inner: CFRP (Carbon Fiber Reinforced Plastics)
TONEARM LIFTER
TechDAS Vacuum Force Lift System
TRACKING FORCE ADJUSTMENT
Spring pressure dynamic balanced
ARM MOUNT
TechDAS Helicoid Height Adjustable Mount
EXTERNAL AIR SUPPLY UNIT
One pump system for intake and exhaust
AVAILABLE LENGTH
10 inch and 12 inch
