CSPort TAT1M2

CSPort TAT1M2 front
CSPort TAT1M2 front

CSPort TAT1M2

A$56,500.00

Turntable

Quantity:
Add To Cart

CSPort TAT1M2

Compactly designed turntable with a flagship concept. The weight of the granite base, solid brass platter & air bearing establish incredibly low noise and rotational stability.


Front of CSPort TAT1M2 turntable

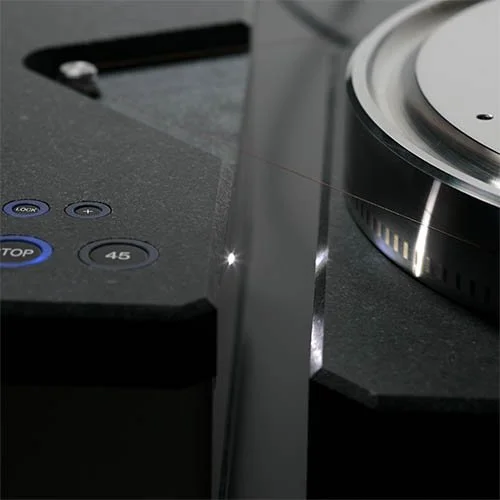

Detail of CSPort TAT1M2 base, platter and motor


Heavy turntable

Equipped with granite base and solid brass platter, which suppresses micro vibrations. Since the platter and tonearm are floated on air layer absorbs even the slightest vibration; the 28 kgs platter is supported only by the pressure of the air (only a few hundred grams).




Non-servo motor drive

Servo noise is eliminated by open control. The platter is driven by a DC Brush-less motor and thread, and the platter rotates by inertia alone.

It uses a unique "XFD system" that provides to the motor a highly accurate voltage with no fluctuations, based on a crystal transmitter

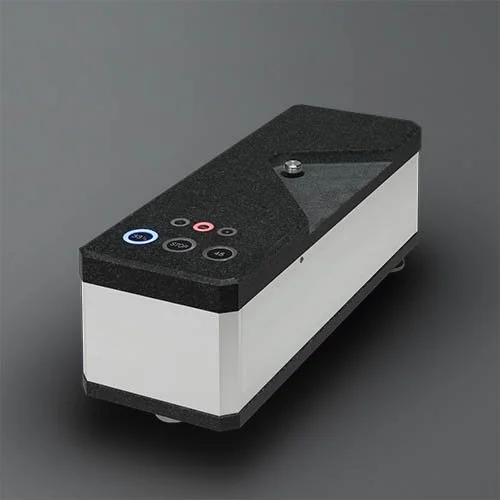

CSPort TAT1M2 turntable brushless motor
CSPort TAT1M2 turntable fitted with two tonearms


Available with two arms

Linear Arm AFU1-2 and your swing-arm can be used. Two arm configurations are also available by adding attachments.



Silent air supply

The air supply is equipped with a highly reliable pump that is also used for medical equipment, and powerfully supplies the capacity required for the platter. The double-sealed sound leakage and vibration prevention system maintains sufficient silence even when installed in a listening room.



Specifications

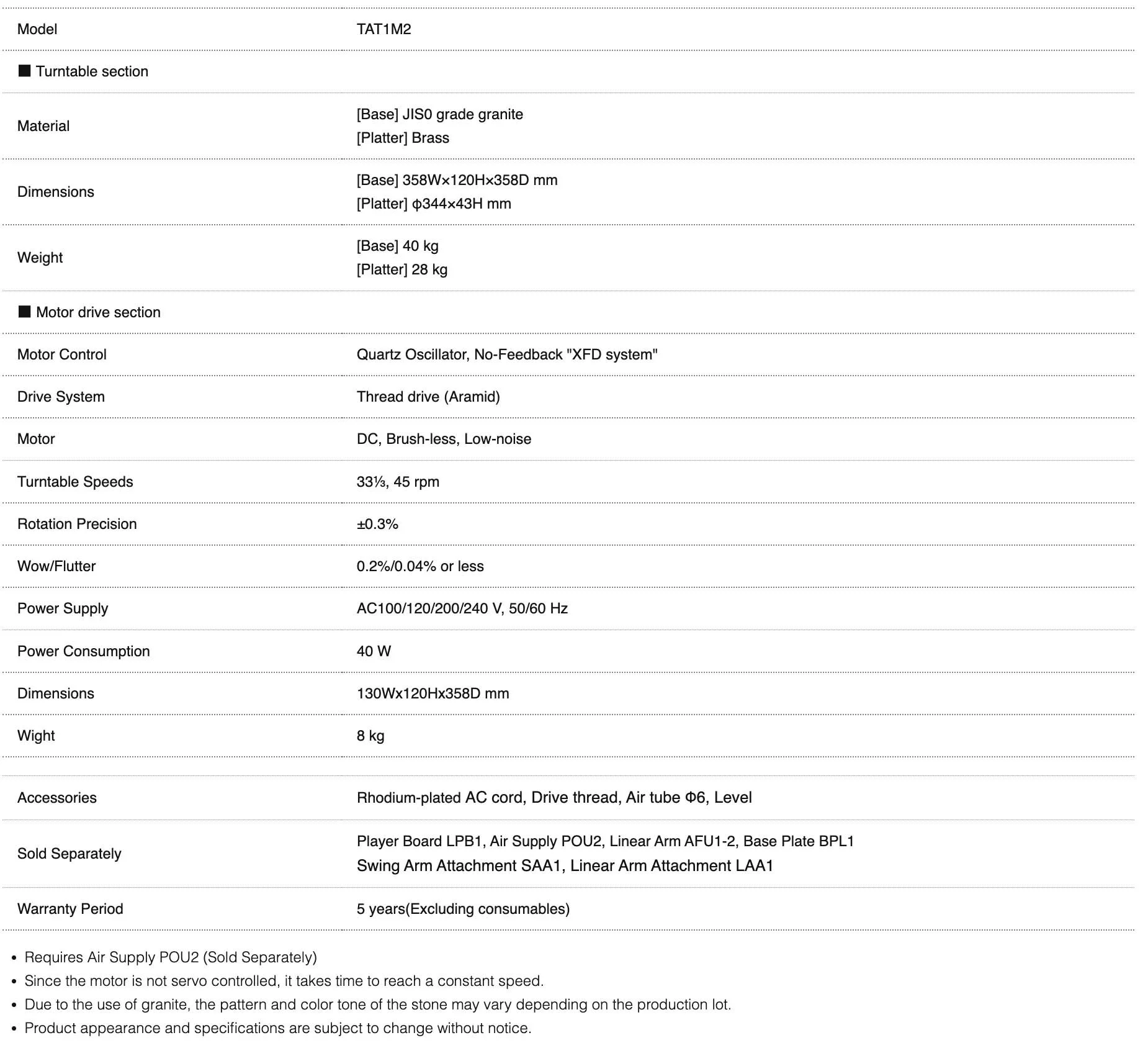

Specifications table for CSPort TAT1M2 turntable





Download CSPort Turntable Brochure

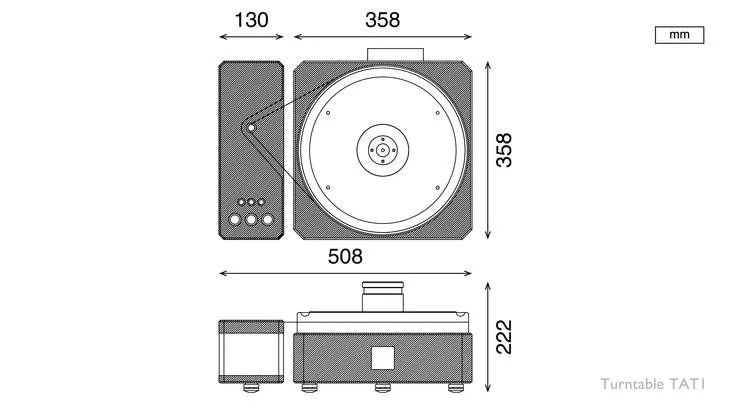

Dimensions diagram of CSPort TAT1M2 turntable

CS Port TAT1M2 Dimensions



Further information available at the manufacturer website or alternately give us a call or email to discuss your needs or organise an audition.
